home > products > chassis > mid tower > Bach VX




Patent Information
Country Patent No.
Taiwan
D118206






Aluminum front bezel with silk finish
Simple, low-profile, and clean designs with versatility
14cm front and 12cm rear silent fans for superb cooling
Built in e-SATA connector
Tool-free installation on 5.25” 、3.5” external drives and PCI cards


Sufficient space for settling Nvidia GeForce 8800 series graphic cards.
(Installation instruction)

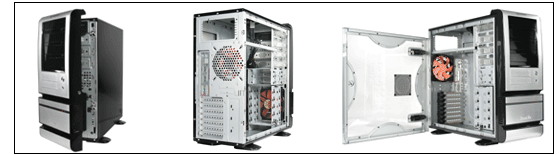

 Appearance


Aluminum with silk finish
Piano-black finish
Simple and clean
Angle view
 Ventilation



Silent 14cm front and 12cm rear fans for superb airflow
Vents on side panel for increased CPU & VGA & COOLING
Ventilation opening for maximum cold air
Front intake 14cm fan keeps hard drives cool

 Structure (Internal)

Tool-free kits for 5.25” drives
Thumb-screw for 3.5" external drives
Removable HDD cage
Tool-free installation on PCI cards
Washable dust filter
Fan bracket provides the ease of removing the fan
Disk shockproof pads to absorb vibration

  Structure (External)

USB 2.0 x 2, e-SATA connector x 1, HD audio

Front and side panel lock for security
Thumb-screw for easy side panel opening
Accessible DVD drive bay w/o opening front door
Easy access Power/Reset button
Power & HDD LEDs
“Bach Vx” logo






Model
VF4000BWS
VF4400BWS
Case Type
Middle Tower
Net Weight
9.24 kg (20.37 lb)
Dimension (H*W*D)
497.0 x 210.0 x 475.0 mm
(19.57 x 8.27 x 18.7 inch)
Cooling System
Front (Intake) : 140 x 140 x 25 mm, 1000rpm, 16dBA
Rear (Exhaust) : 120 x 120 x 25 mm, 1000rpm, 15dBA
Drive Bays
- Accessible
- Hidden
11
4 x 5.25’’, 2 x 3.5’’
5 x 3.5’’
Material
Front bezel : Aluminum
Body : 0.8mm SECC
Color
Black
Expansion Slots
7
Motherboards
Micro ATX , Standard ATX
PSU
Standard ATX PSII
I/O Ports
USB 2.0 x 2, e-SATA connector x 1, HD audio
PSU
N/A
400W ATX 12V V2.0
Container Load
20’-372, 40’-781, 40’HQ-870
