home > products > chassis > desktop > Mozart IP





The World’s First Chassis With An Integrated iPod Dock
iPod charger dock design
Exclusive iPod remote control built-in
Enjoy music without turn on PC
Front I/O for easy access

Multimedia LAB kit (VF3000BNS: optional ;VF3001BNS: Built-in)
1. Media LAB remote control
2. Media LAB application CD
3. Media LAB VFD panel




Exclusive iPod Dock Design

Front door design for iPod user.
iPod charger dock design
Exclusive iPod remote control built-in


This button will allow you to jump to the previous track or chapter of the current playing media.
Hinge design for front door


Exclusive PCB Panel Design

PCB Panel Design for transfer MP3 music
PCI Slot for Cable plug-in
Switch sound for iPod & PC music


External Structure

Modern look, best for using as HTPC
VFD panel (optional)
Easy access Power & Reset button
Stylish gold-plated foot stands
Intake air vent for providing better air flow
Easy access USB2.0 & 1394 ports

Internal Structure

Front 80mm intake fan
Accessible DVD drive bay w/o opening front door
Rear dual 60 exhaust fans
Hinge design for front door
PSII power supply compliant
Two bridges for strengthening case structure

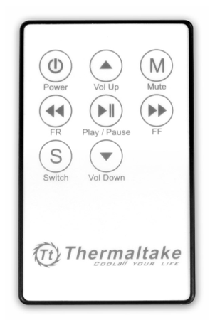

Exclusive iPod Remote Control
This button will allow you to jump to the previous track or chapter of the current playing media.
This button will allow you to jump to the next track or chapter of the current playing media
This button will allow you to mute the current playing media.
This button will allow you to start playing the media of your choice.
This button will be able to increase the sound volume of your current playing media.
This button will be able to decrease the sound volume of your current playing media.
This button will allow you to turn off the current playing speaker.
This Button will be able to switch the sound form PC or iPod

Point for attention
The Mozart iP is the first professional chassis to feature an integrated docking station for the popular iPod.
Mozart iP designs only for iPod 30GB/ 60GB/ 80GB. iPod Nano, and iPod Shuffle are not compatible with Mozart iP. Please refer to the compatibility chart.

P.S.: All other trademarks and copyrights are property of their respective owners. iPod not included.



Model
VF3000BNS
VF3001BNS
Case Type
Media Music PC Case
Net Weight
8.0 kg
8.5 kg
Dimension (H*W*D)
170(H) x 430(W) x 450(D) mm
Cooling System
Front (Intake) : 80 x 80 x25 mm silent fan, 2000rpm, 19dBA
Rear (Exhaust) : Dual 60 x 60 x25 mm, 2500rpm, 19dBA
Drive Bays
-Front Accessible
-Internal
8
2 x 5.25’’, 1 x 5.25’’ Accessory Bay
5 x 3.5’’
Material
Front Panel: Aluminum ; Chassis:1.0 mm SECC
Color
Black
Expansion Slots
7
Motherboards
Micro ATX , Standard ATX
Media kit
Optional
Built-in








Over View
Features
- VF3000BNS
- VF3001BNS
- VF3000SNS
- VF3001SNS
Specification
Specification
Specification
Specification
