DH101 VF7001BNS

	Piano mirror coating with aluminum front panel design
	Built-in Media LAB LCD with hot keys module (Windows Vista Ready) :
	-1. LCD capable of display any language
	-2.10 functional hot key bottons

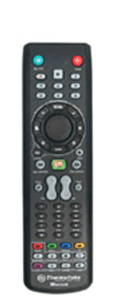

	-3. Vol. Control Knob and remote control
	Compatible with Windows VISTA, MCE remote and keyboard
	High efficiency ventilation:12cm silent fan in front & dual 6cm fan in rear
	Supports ATX form factor & mATX form factor
	Supports ATX PS2 power supply

Efficiently Ventilation

Ventilation opening on top and side

Intake vents - Minimizes Overall Noise


Ventilation opening on side	Front Fan (intake) : 120 x 120 x 25 mm silent fan, 1200rpm, 16dBA

Rear Fan (Exhaust) :
Dual 60 x 60 x 25 mm silent fan, 2500rpm 19dBA.

Ventilation opening on top

Air Flow

Detailed Features：External Structure

Metallic feel front access cover

USB2.0 & 1394 ports & HD Audio

Power Button

Stylish Gold-plated Foot Stands

Accessible DVD Drive Bay w/o Opening Front Door

Detailed Features：Internal Structure


Internal Structure overview

Screwless slots for easy assembling

Tool-free installation for 5.25’’ device

Tool-free installation for 3.5” device

Internal Structure overview

Bridge for Strengthening Case Structure

Removable HDD cage for easy installation

with superb media

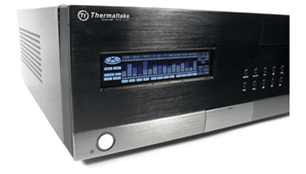

Built-in Media LAB with 10 buttons Hot Keys Module	Media LAB LCD Display

High quality metallic feel knob	LCD can display every languages like German, Russian and Chinese...

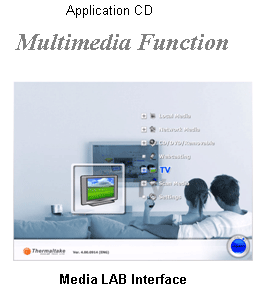

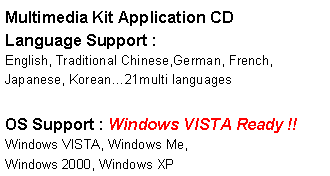

Media LAB kits
