ATX
12V 2.2
EPS 12V
AMD / Intel
Quad Core Support
PCI Express
Connectors
X6
S-ATA
Connectors
X8
Quad GPU Ready
Stable 1200W continuous output (at 50℃ operating environment)
Four independent & dedicated +12V rails(12V1,12V2,12V3,12V4) provides superior
performance for PC system. (combined loading of 99A)
NEW! Three 8pin and three 6pin PCI-E connectors design supports Multi-GPU Graphic card.
Supports Dual Core CPU / Quad Core CPU / Nvidia SLI & Quad SLI and all Multi-Core GPU
technologies.
Modularized Cable Management to eliminate clutter and improve airflow inside the case.
Independent Voltage Circuit: offers unflappable current delivery under heavy load.
Strict voltage regulation (±3%): provides steady voltage for system.
Active Power Factor Correction (PF>0.99) and high efficiency (up to 87%).
Industrial grade components (capacitor, transformer, etc)
High reliability: MTBF>120,000 hours.
Quiet and reliable 14cm ball-bearing fan.
Protections: Over Current, Over Voltage, Under Voltage, Over Temperature, Over Power,
and Short-Circuit protection.
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.


Toughpower 1200w PSU - 1200w/100a Load:
Total Output Connector:
20+4-pin Main
Connector X 1
4+4 pin power
connector X 1
8-pin power
connector X 1
4-pin Peripheral
Connector X 8
Floppy
Connector X 2
5-pin S-ATA
Connector X 8
8-pin PCI-E
Connector X 3
6-pin PCI-E
Connector X 3



Technology Features:
High-Performance Quad +12V Rails, Triple Transformers and EPS Structure
Hi-Tech Black Coating
8 S-ATA Connectors
Silent 140mm Fan
Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%

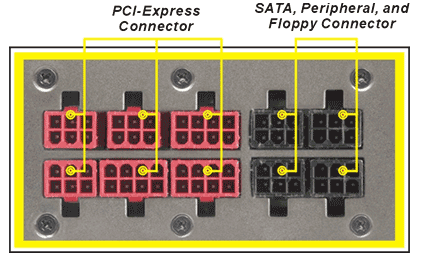

Embedded Socket Design:
Cable Application:
Intelligent Cable Management (W0132/W0133 only) :

All cables are sleeved with black mesh cable sleeving
  Optimum air-flow currents within the chassis



Model
W0133
Power
1200W
Dimension
200mm(L)x160mm(W)x86mm(H)
Switches
ATX Logic on-off additional power rocker switch
PFC
Active PFC (PF > 0.9)
Cooling System
140mm Fan, 2300RPM ± 10%
Noise
16 dBA at 1300 RPM
P. G. Signal
100-500 ms
Efficiency
up to 87%
Hold-up Time
16ms

Input Voltage
115 VAC ~ 230 VAC
Input Frequency Range
47 ~ 63 Hz
MTBF
120,000 hrs minimum (at 25 ℃)
Input Current
15A

Voltage
+12V1
+12V4
+3.3V
+12V2
+12V3
+5V
-12V
+5Vsb
Max/Min
20A/1A
36A/1A
30A/0.5A
20A/1A
36A/1A
30A/0.5A
0.8A/0A
3.5A/0A
Regulation *1
+3,-3%
+3,-3%
+3,-3%
+3,-3%
+3,-3%
+3,-3%
+10,-10%
+3,-5%
Ripple & Noise *2
120mV
120mV
50mV
120mV
120mV
50mV
120mV
50mV
Max Output
600W
600W
9.6W
17.5W
Total Power
1200W

*1. +5Vsb operate at 3.5A max load base on PS-ON mode. If PS-OFF +5Vsb only operate
      at 3A max load.
*2. Add 0.1uF and 47uF capacitors across output terminal during ripple & noise test.

Operating Temp.
10 ℃ to 50 ℃
Storage Temp.
-20 ℃ to 70℃
Operating Humidity
20% to 90%, non-condensing
Storage Humidity
5% to 95%, non-condensing

DC rail
Trigger Point/Range
Over Voltage Protection
+3.3V trip point
4.5 Vmax
+5.0V trip point
7.0 Vmax
+12.0V trip point
15.6 Vmax
Over Current Protection
+3.3V
33A ~ 50A
+5.0V
33A ~ 50A
+12V1 & +12V2
22A ~ 35A
+12V3 & +12V4
39A ~ 55A
Under Voltage Protection
+3.3V trip point
2.0 Vmin
+5.0V trip point
3.3 Vmin
+12.0V trip point
8.5 Vmin
Short Protection
All output to GND








Over View
Features
Specification
Specification
Specification
Specification
