TR2 RX Cable Management 550W

home > products > power > TR2



ATX 12V 2.2	PFC	AMD / Intel Dual Core Support	PCI Express Connectors X2	S-ATA Connectors X4	Universal 24Pin

	Complies with ATX 12V 2.2 Version.
	Compatible with latest dual PCI-Express and Dual Core CPU configuration.
	Reliable 140mm ball bearing fan.
	Modularized cable management improves internal airflow.
	PFC function improves energy efficiency.
	Super quiet and stable 140mm ball bearing fan.
	Gold-plated connector for better conductivity.
	Built in industrial-grade protections: Over Current, Over Voltage, and Short-Circuit.
	Safety / EMI Approvals: UL, CUL, TUV, FCC and CE certification.

	Total Output Connector:

24-pin Main Connector X1
& 4-pin +12V X1

6-pin PCI Express Connector X 2

4-pin Peripheral
Connector X 8
Floppy
Connector X 2

5-pin S-ATA
Connector X 4

	Technology Features:

14 cm Fan – High thermal performance

Universal 24(20) pin Main Connector

Dual +12V Rails

PCI-Express Connectors

	Embedded Socket Design

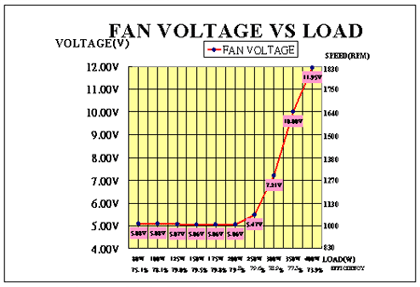

	Thermal Performance:

	Cable Application:


Intelligent Cable Management : All cables are sleeved with black mesh cable sleeving Optimum air-flow currents within the chassis

P/N	W0134
Maximum Power	550 Watts
Color	Hi-Tech Black
Switches	ATX Logic on-off additional power rocker switch
PFC (Power Factor Correction)	Passive PFC
Cooling System	One 140mm Fan: SPEED : 2300 RPM(+/-10%) DIMENSION : 140 x 140 x 25 mm AIR FLOW: 105 CFM TEMP. AUTO CONTROL BEARING TYPE: Two Ball-Baring
Noise	16 dBA at 1300 RPM
P. G. Delay	100-500 ms
Over Voltage Protection Recycle AC to Reset	+5V output 7.0 Vmax +3.3V output 4.5 Vmax +12V output 15.6 Vmax

DIMENSIONS
Unit Size	160mm(L)x150mm(W)x86mm(H)
Net Weight	2.2 kg

INPUT
Input Voltage	115 VAC / 230 VAC
Input Frequency Range	50 ~ 60 Hz
Input Current	10A / 5A
Hold-up Time	8ms(minimum) at 80% of Full Load, at 230Vac input
Efficiency	> 70%

OUTPUT
Voltage	+3.3V	+5V	+12V1	+12V2	-12V	+5VSB
Max. Load	30A	28A	16A	17A	0.3A	3.0A
Min Load	05.A	0.3A	1.0A	1.0A	0.0A	0.0A
Peak load	--	--	--	--	--	50mV
Load Reg.	±5%	±5%	±5%	±5%	±10%	±5%
Ripple & Noise	100 mV	100 mV	150 mV	150 mV	150 mV	100 mV
