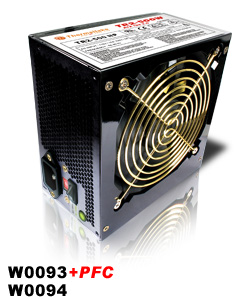

ATX 12V 2.0 PFC Connector Universal 20+4 Pin
Support Intel processor Support AMD Processor Serial ATA


  Complies with ATX 12V 2.0 Version.
  Support 6-pin PCI-Express, 4 SATA, and 20+4 pin connector.
  PFC function, improved energy efficiency and reduced current load on AC delivery systems.
  Low noise 12cm fan and mirror effect casing.
  Power ON/OFF LED indicator: green light indicates power on and orange light indicates stand by mode.
  Protections against Over Current, Over Voltage, and Short-Circuit.
  Safety / EMI Approvals: UL, CUL, TUV, CE, and CB certification.

Detail Information
Technology Features

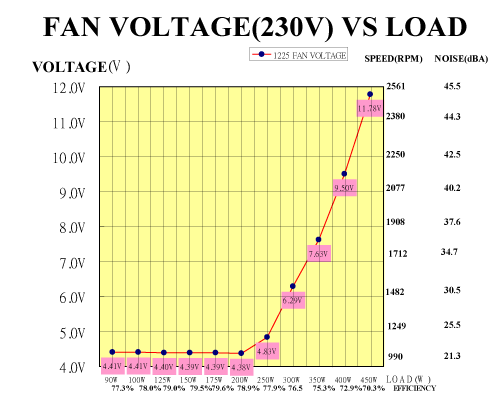

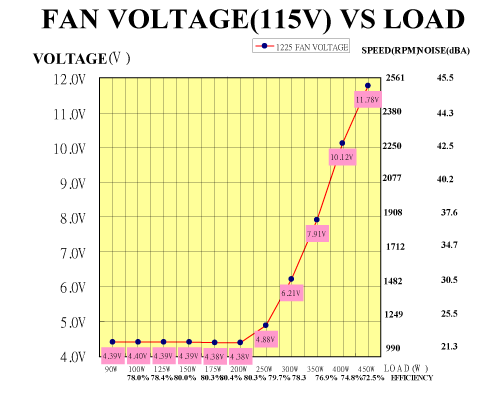

12 cm Fan High thermal performance
New 24(20) pin Main Connector
Dual +12V Rails
6 pin PCI-Express Connector
5-pin SATA Connector Mirror Coating

Total Output Connector

24-pin Main Connector
x1

4-pin+12V Power Connector
x1

4-pin Peripheral Power
Connector
x8

4-pin Floppy Drive Connector
x2
5-pin SATA Connector
x4
6-pin PCI Express Connector
x1
Cable Application


Intelligent Cable Management: Black cable sleeving Optimum air-flow

Cooling System

12cm Fan Design -
Optimum Air flow and Low Noise
Performance
OUTPUT
+3.3V
+5V
+12V1
+12V2
-12V
+5VSB
Max. Load
30A
28A
14A
15A
0.3A
2.0A
Min. Load
0.5A
0.3A
1.0A
1.0A
0.0A
0.0A
Load Reg.
5%
5%
5%
5%
10%
5%
Ripple
V(p-p)
50mV
50mV
100mV
100mV
100mV
50mV



P/N
 W0093 W0094
Maximum Power
500 Watts
Switches
ATX Logic on-off additional power rocker switch(115/230 V selector switch)
Color
Black
PFC
(Power Factor Correction)
 PFC N/A
Cooling System
One 12cm Fan :
SPEED : 2500 RPM(+/-10%)
DIMENSION : 120 x 120 x 25 mm
AIR FLOW: 98.6 CFM
TEMP. AUTO CONTROL
Noise
17dB at 1300RPM
P. G. Signal
100-500 ms
Over Voltage Protection recycle AC to reset
+5V output 7.0 Vmax
+3.3V output 4.5 Vmax
+12V output 15. 6 Vmax
Dimensions
Unit Size
14cm(L)x15cm(W)x8.6cm(H)
Net Weight
 2.0 kg 1.85 kg
Input
Input Voltage
115 VAC / 230 VAC
Input Frequency Range
47 ~ 63 Hz
Input Current
10.0A / 5.0A
Hold-up Time
8ms(minimum) at 80%
Efficiency
> 70%




Over View
Features
Specification
Specification
Specification
Specification
