Support 6-pin PCI-Express, 4 SATA, and 20+4 pin connector.
PFC function, improved energy efficiency and reduced current load on AC delivery systems.
Low noise 12cm fan and mirror effect casing
Protections against Input Protection, Over Power, Over Voltage, Short-Circuit, and No Load Operation.
Safety / EMI Approvals: UL, CUL, TUV, CE, and CB certification. (For PFC Version)
UL, CUL, TUV, FCC, and CB certification. (For Non PFC Version)
Detail Information
Technology Features
12 cm FanHigh thermal performance
New 24(20) pin Main Connector
Dual +12V Rails
6 pin PCI-Express Connector
5-pin SATA
Connector
Mirror Coating
Total Output Connector
24-pin
Main Connector x1
4-pin+12V
Power Connector x1
4-pin Peripheral
Power Connector x8
4-pin Floppy Drive Connector
x2
5-pin SATA
Connector x4
6-pin PCI Express Connector x1
Cable Application
Intelligent Cable Management: Black cable sleeving
Optimum air-flow
Cooling System
12cm Fan Design - Optimum Air flow and Low Noise
Performance
OUTPUT
+3.3V
+5V
+12V1
+12V2
-12V
+5VSB
Max.
Load
22A
32A
14A
15A
0.3A
2A
Min.
Load
0.5A
0.5A
1.0A
1.0A
0.0A
0.0A
Load
Reg.
5%
5%
5%
5%
10%
5%
Ripple
V(p-p)
50mV
50mV
100mV
100mV
150mV
50mV

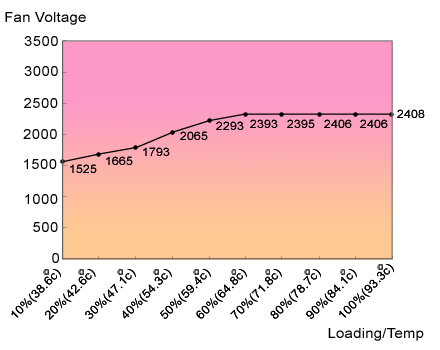

TR2 470W Fan Voltage Control By
Loading/Temp
TR2 470W Fan RPMV.S Temp

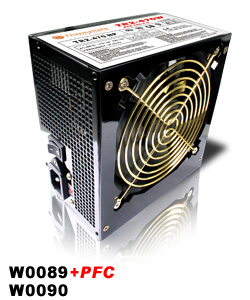

P/N
W0089
W0090
Maximum Power
470 Watts
Switches
ATX Logic on-off additional power rocker switch(115/230 V selector switch)
Color
Black
PFC
(Power Factor Correction)
PFC
N/A
Cooling System
One 12cm Fan :
SPEED : 2400 RPM(+/-10%)
DIMENSION : 120 x 120 x 25 mm
TEMP. AUTO CONTROL 1525 rpm at 28.6 C~2393 rpm at
64.8 C
Noise
19dB at 2000RPM
P. G. Signal
100-500 ms
Over Voltage Protection recycle
AC to reset
+5V output 6.25 0.75 V
+3.3V output 4.0 0.30V
+12V output 15.0 0.6V
Dimensions
Unit Size
14cm(L)x15cm(W)x8.6cm(H)
Net Weight
1.93 kg
1.68 kg
Input
Input Voltage
115 VAC / 230 VAC
Input Frequency Range
47 ~ 63 Hz
Input Current
9.0A / 5.0A
Hold-up Time
8ms(minimum) at 80%
Efficiency
> 70%
