5.25" Drive Bay Easy Connector Performance

Patent Information
Country Patent No.
Taiwan
M 271364



Application: Can be applied to Thermaltake BigWater and other liquid cooling system



For 5.25” drive bay : the indicator can fit into two 5.25" drive bays in the case



Quick Install Connectors: The connection of the temperature probe is suitable for tubing of 6.4 to 9.5 mm to inner diameter.

  Water level : Transparent window indicate the level of the water
  Water flow : indicate the movement of the liquid
  Mounting Plates : Stylish front plate is designed to attach the indicator within two 5.25" drive bays

Detail Information
The Transparent window has an indicator to show the level of liquid system Indicate the movement of the liquid
The liquid Inlet and outlet of liquid indicator

Colored anodized aluminum



Can fit into the 5.25'' drive bay

Stylish front plate

Component


2 additional Quick Install Connector sizes to change(For 6.4mm (1/4”) & 9.5mm (3/8”) tubing)

UV sensitive Water Tube 150cm

Application for Desktop PC

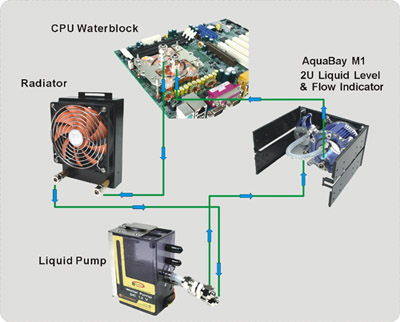

Application A: Apply AquaBay M1 to BigWater

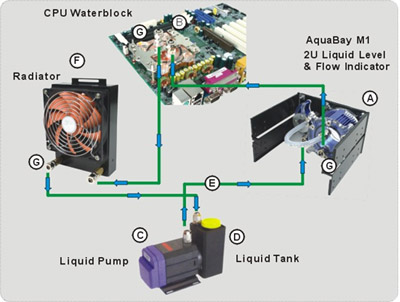

Application B: Apply AquaBay M1 to other liquid cooling system
You can install the liquid components shown below to make up a liquid cooling system:
A.

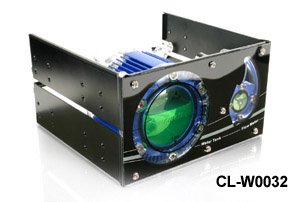

 Thermaltake AquaBAy M1
B.

Thermaltake CPU Waterblock
(CL-W0038)

C.
 Liquid Pump
D.
 Liquid Tank
E.
 ID=9.5mm Tube
F.
 Thermaltake 12cm Radiator
G.
 ID=9.5mm Quick Install Connector




Optional Devices for Desktop PC



flow indicator(right side)
Dimension
58.9 x 35.88 x 26  mm
Weight
103 g
Main Body
Pure Aluminum, Anodized
water level indicator(left side)
Dimension
82.97 x 82.97 x 60  mm
Weight
402 g
Material
Pure Aluminum, Anodized
Mounting Plates
Dimension
148 x 86 x 140  mm
Material
iron
Total Weight
600g
install Connector
Quick install Connector(1)
For 6.4mm ID (1/4“) tubing
Quick install Connector(2)
For 9.5mm ID (3/8”) tubing





Over View
Features
Specification
Specification
Specification
Specification
