home > products > Liquid Cooling System > upgrade






5.25" Drive BAy Easy Connector
Performance 12cm Fan

Patent Information
Country Patent No.
Taiwan
M 269702

  Application: Can apply to Thermaltake BigWater and other liquid cooling system
  For 5.25" drive bay: The radiator can fit into the drive bay in the case
  12cm big Radiator: Aluminum fins and cooper tubes with 12cm Fan
  Quick Install Connector: Saving your time to install device conveniently
  Low noise fan: 120x120x25 mm fan (1300RPM 16dB)

Detail Information
Aluminum Fins The liquid Inlet and outlet of Radiator
120x120x25 mm fan with grille The radiator can fit into the
5.25" drive bay
Stylish front plate
Components

2 additional Quick Install Connector sizes to change(For 6.4mm (1/4”) & 9.5mm (3/8”) tubing) UV sensitive Water Tube
150cm
Heat Diagram

Application for Desktop PC

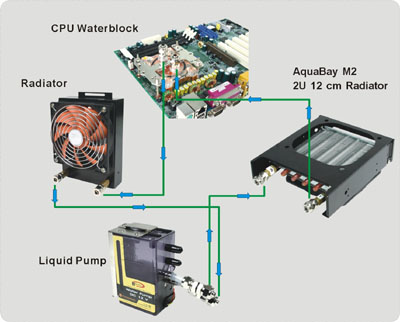

Application A: Upgrade your BigWater

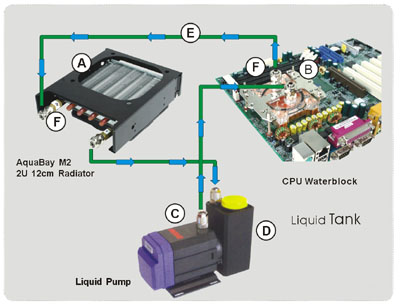

Application B: Apply AquaBay M2 to other liquid cooling system
You can install the liquid components shown below to make up a liquid cooling system:
A.
 Thermaltake AquaBay M2
B.
 Thermaltake CPU Waterblock
(CL-W0038)
C.
 Liquid Pump
D.
 Liquid Tank
E.
 ID=9.5mm Tube
F.
 ID=9.5mm Quick Install Connector

Optional Devices for Desktop PC




P/N
CL-W0021
Fan
Dimension
120 x 120 x 25 mm
Fan Speed
1300 RPM
Rated Voltage
12V
Rated Current
0.30A
Max. Air Flow
54.4CFM
Air Pressure
1.87mmH2O
Bearing Type
Sleeve
Noise
16dB
Connector
4pin
Radiator
Dimension
166x 122 x 35 mm
Material
Aluminum
Total Weight
925g
Quick Install Connector
Quick install Connector(1)
For 6.4mm ID (1/4") tubing
Quick install Connector(2)
For 9.5mm ID (3/8") tubing





Over View
Features
Specification
Specification
Specification
Specification
