home > products > Liquid Cooling System > DIY L.C.S. >




4 in 1 copper waterblock: Pure copper waterblock designed with brazing technology. Applies

to both Intel LGA 775/P4 and AMD AM2/K8.
24cm radiator: High performance radiator with dual 12 cm silent fans (1400 RPM/17dB).
Powerful black DC 12V liquid pump with 400L/h flow rate
Quick Disconnect Coupling: The fittings incorporate valves of CPC Quick Install Connectors

can prevent leaks.
Refill liquid reservoir: High capacity liquid tank capable of holding 800c.c. of coolant for

continuous usage.
Easy to refill.
Mesh design front and rear panel for maximum ventilation



Pure copper waterblock designed with brazing technology Giant 24 cm all aluminum radiator
Liquid reservoir with 800 cc capacity Transparent indicator to observe the liquid level
2 x 1400RPM fans with blue LED(17dB) Powerful black DC 12V liquid pump with 400L/h flow rate
Crescent-style aluminum handle Easy to refill liquid tank
Liquid inlet and outlet - The socket of power cord Mesh design front and rear panel for maximum ventilation
300 cm DC Power Cord UV coolant(500cc) x 2
Universal PCI Bracket DC Socket /one male 3 pin connector、 one female 4 pin connector Refill Bottle

Installation of waterblock on motherboard
For Intel P4 For Intel LGA 775
For AMD K8 For AMD AM2

Applications

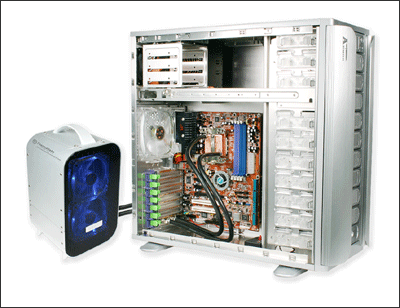

The Tribe VX installed in the Thermaltake Armor

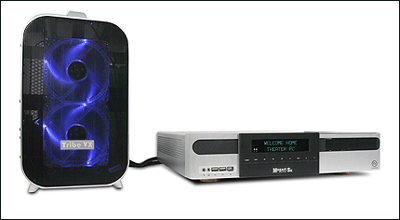

The Tribe VX installed in the Thermaltake Mozart Sx

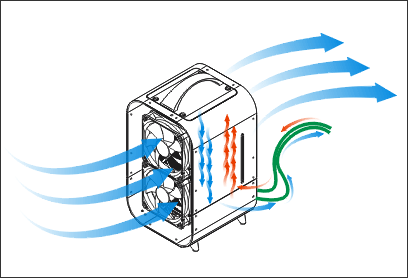

Thermal Flow Chart



Main body :
Dimension 210 (L) x 196 (W) x 361 (H)mm
Framework material Aluminum
Weight 4,450g
Cooling System 2x12cm silent fan (1400RPM/ 17dB)
24 cm radiator Aluminum material
Liquid tank Refill liquid easily
Capacity of coolant 800 CC
UV coolant UV sensitive coolant

4 in1 CPU Water block :
Application Intel LGA 775 / P4 AMD AM2 / K8
Material Pure copper waterblock designed with brazing technology

Pump :
Dimension 75 (L) x 70 (W) x 75 (H) mm
Bearing Ceramic bearing
Maximum flow rate 400L/h
Rated voltage 12 V
Connector 4 pin
LED Blue LED
Noise 16 dB
Life time 70,000 hr (MTBF)
