home > products > liquid cooling system > diy l.c.s. >









World 1st liquid cooling system supports ATX / BTX motherboard
Application for Intel P4 , LGA775 ,Intel BTX platform and all AMD K8 , AM2 series
Remarkable 120mm Radiator:
  High performance radiator with a 120mm silent VR fan(1300 ~ 2400rpm).
Superb Liquid Pump with 400 L/hr:
  1. Silent and powerful P400 pump provides superb reliability
  2. The pedestal can be secured onto the case by screws
  3. The ceramic bearings significantly extend the life-expectancy of the pump
  4. Thoughtful inlet and outlet design prevents air blocks from the water flow
Exceptional Liquid Tank :
1. High capacity liquid tank capable of holding 350c.c. of liquid for continuous usage
2. Easy to refill
Second-to-none Copper Water Block :
1. With blue LED acrylic covering illuminates the CPU
  2. Increased number of water channel within the water block greatly enhances the thermal efficiency
  3. Circle base of water block is applicable to BTX motherboard
Durable 3/8" Tube:
  1. Special material to prevent wear & tare from being clogged up from over bending
  2. User Friendly Installation, tool-less connector design




Remarkable 120mm Radiator
Fan Speed Controller

Exceptional Cpu Waterblock
Durable 3/8" Tube (Tool-less)
Superb Liquid Pump   Exceptional Liquid Tank

Application
1st liquid cooling system supports ATX/BTX motherboard
Clip for BTX
Clip for LGA775
Clip for K8
Clip for AM2
Connect Big Water 745 with Aromr Chassis

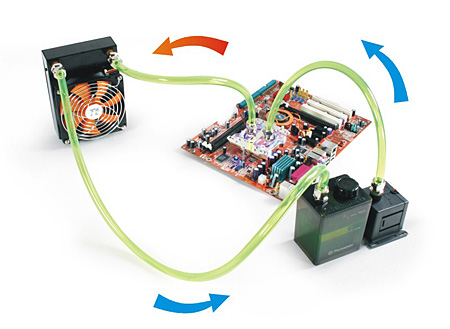

Liquid flow system

Application
CPU
AMD all K8 series
Intel LGA775
Intel BTX platform
Waterblock
Dimensions
78(L) X 60(W) X 23.5(H) mm
Material
Copper & Acrylic
Connector
3 pin
LED
Blue LED
Pump
Dimensions
75(L) X 70(W) X 75(H) mm
Bearing
Ceramic bearing
Maximum Capacity
400 L/ hr
Rated Voltage
DC 12V
Connector
3 pin , 4 pin
LED
Blue LED
Noise
16 dBA
Life time
70000 hr (MTBF)


120mm Radiator
Dimensions
166(L) X 122(W) X 35(H) mm
Material
Aluminum
Fan Dimension
120(L) X 120(W) X 35(H) mm
Fan Speed
1300 ~ 2400 RPM
Max Air Flow
38.6 CFM ~ 93.7 CFM
Noise
16 ~ 30 dB
Fan Connector
4 pin
Liquid Tank
Dimensions
86(L) X 66(W) X 110(H) mm except connector
Capacity
350 c.c
Quick install connector
For 9.5mm ID(3/8 " ) tube
Tube
Dimensions
9.5mm ID(3/8 " ) tube
Material
Green UV
Coolant
Capacity
500 c.c
Major Material
Ethylene Glycol





Over View
Features
Specification
Specification
Specification
Specification
