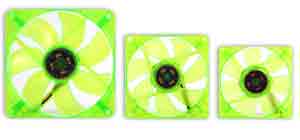

UV Fan |
 |
8025 Fan |
|
9025 Fan |
 |
12025 Fan |
 |
Power Connector |
|
|
 |
Great UV reactivity, ideal
for case MOD |
|
Three dimensions selections,
8.9.12 CM |
|
Application of PC case |
|
4
pin connector with Power input |
|
3
pin connector with fan speed signal output |

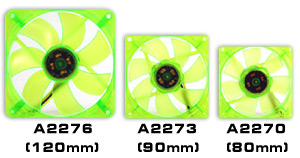

 Dimension
 |
 |
 |
A2276
(120mm) |
A2273
(90mm) |
 |
UNIT:
mm |
A2270
(80mm) |
|
P/N |
A2270 |
A2273 |
A2276 |
Frame Color |
Green UV |
Green UV |
Green UV |
Fan Dimension |
80x80x25 mm |
92x92x25 mm |
120x120x25 mm |
Rated Voltage |
12V |
12V |
12V |
Started Current |
6V |
6V |
9V/
10 (Max) |
Rated Current |
0.10A/
0.14A (Max) |
0.13A/
0.16A (Max) |
0.3A
(Max) |
Power Input |
1.2W/
1.68W (Max) |
1.56W/
1.92W (Max) |
3.6W
(Max) |
Fan Speed |
2000RPM
10% |
1800RPM
10% |
1400RPM
15% |
Max. Air Flow |
27.8
CFM |
30.68
CFM |
54.45
CFM |
Max. Air Pressure |
1.98
mm-H2O |
1.53
mm-H2O |
1.874
mm-H2O |
Noise |
21dB |
21dB |
21dB |
Bear Type |
Sleeve |
Sleeve |
Sleeve |
Life Expectation |
30,000hrs |
30,000hrs |
30,000hrs |
Connector |
4
pin |
4
pin |
4
pin |
Weight |
63g |
86g |
140g |
|
|
 |
|
|
