UV Fan |
 |
8025 Fan |
|
9025 Fan |
 |
12025 Fan |
 |
Power Connector |
|
|
 |
Great UV reactivity, ideal
for case MOD |
|
Three dimensions selections,
8.9.12 CM |
|
Application of PC case |
|
4
pin connector with Power input |
|
3
pin connector with fan speed signal output |
 Detail Information
 |
 Structure (We strongly recommend using these cable
with Thermaltake Perfectlight D1721) |
|
|
|
|
| Function
2: |
|
4-pin power input & |
|
3-pin speed
signal output |
|
| Application |
|
|
Case Fan view |
 |
CPU Fan view |
|
|
 |
Package View |
|

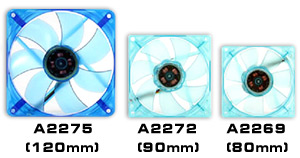

Dimension
|
 |
 |
A2275 (120mm) |
A2272 (90mm) |
 |
UNIT: mm |
A2269 (80mm) |
|
P/N |
A2269 |
A2272 |
A2275 |
Frame Color |
Blue UV |
Blue UV |
Blue UV |
Fan Dimension |
80x80x25 mm |
92x92x25 mm |
120x120x25 mm |
Rated Voltage |
12V |
12V |
12V |
Started Current |
6V |
6V |
9V/ 10 (Max) |
Rated Current |
0.10A/ 0.14A (Max) |
0.13A/ 0.16A (Max) |
0.3A (Max) |
Power Input |
1.2W/ 1.68W (Max) |
1.56W/ 1.92W (Max) |
3.6W (Max) |
Fan Speed |
2000RPM ± 10% |
1800RPM ± 10% |
1400RPM ± 15% |
Max. Air Flow |
27.8 CFM |
30.68 CFM |
54.45 CFM |
Max. Air Pressure |
1.98 mm-H2O |
1.53 mm-H2O |
1.874 mm-H2O |
Noise |
21dB |
21dB |
21dB |
Bear Type |
Sleeve |
Sleeve |
Sleeve |
Life Expectation |
30,000hrs |
30,000hrs |
30,000hrs |
Connector |
4 pin |
4 pin |
4 pin |
Weight |
63g |
86g |
140g |
|
|
 |
|
|
