All copper structure provides effective heat conductivity and dissipation.
Seamless soldering process provides best contact for heat transfer.
A universal clip design fix all motherboard.
Multi-direction installation:
Rotatable clip can adjust to any direction for the best system air flow.
40x40x10mm Silent LED fan, 19dBA.
Detail Feature :
Front View
Side View
Back View
Top View
Base View
APPLICATION (2 ways to install) :

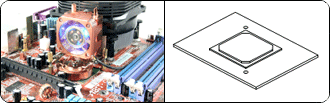

Application 1:
Mounting holes.

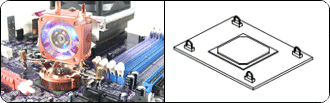

Application 2:
Anchor clips.
Heatsink Dimension
48x40x70 mm
Fan Dimension :
40x40x10 mm
Rated Voltage :
12V
Started Voltage :
7V
Rated Current :
0.1A
Power Input :
1.20W
Fan Speed :
4500±10% RPM
Max. Air Flow :
3.47 CFM
Max. Air Pressure:
1.61mmH2O
Noise :
19dBA
Life Expectation :
30,000 Hours
Connector :
3 Pin
Weight:
169 g
