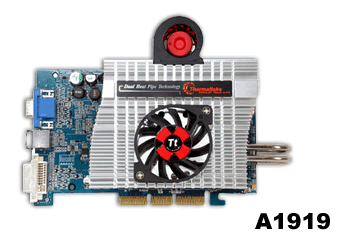

Side View
(Click image for detail view) |

|
Dual heatpipe move
the heat more efficiently
|
 |
External Heatpipe Module
w/ copper fins
|
 |
Blower Fan :
Turbo mode to turn on, for overclocking |
 |
ReverFlow Fan :
H/M/L speed, manage the noise level |
 |
Wire Sleeving |
1. Speed Switch, fit on
PCI slot |
2. Fan controller: |
|
Turbo mode - turn
on the blower fan
|
|
Speed control - control
the reverflow fan at H/M/L speed |
|
