• Unique 60mm fan blade design to optimize the airflow while keeping
the noise at minimal
Maximum & Effective Cooling
• Pure Copper Base for maximum heat conductivity from heat source.
• Advanced Brazing Technology enhances the thermal efficiency.
• Effective cooling for the GPU and the video card memory at the same time
with aluminum memory heatsink.
• Special fan shroud concentrates the airflow and focuses the air to the hotspot .
Easy Installation
• Easy to install.
Detail Features
Blower fan with special blade design : rotating extremely silent.
Brazing Pure Copper Waterblock
Copper base with high performing thermal grease Dow Corning TC-5200
Industrial-Grade tube with EPOXY
Quick Install Connectors
Application

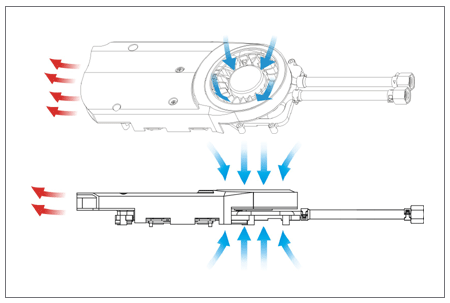

TMG AT4 Thermal Flow
Blue arrow: Cold air in Red arrow: The heat to be took out

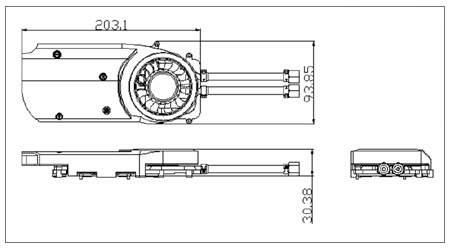

Dimension

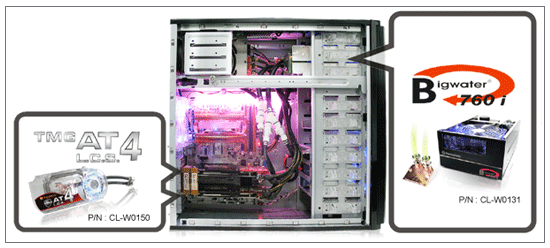

Upgrade your BigWater 760i with the TMG AT4
You can apply the TMG AT4 to fit into any Thermaltake liquid cooling system.
Compatibility
Application for ATi Radeon HD 2900 XT
Dimension
203.1(L)x 93.85(W)x 30.38(H)mm
Waterblock Material
Brazing pure copper waterblock
Coldplate Material
Aluminum
Pipe
Copper tube Ø 6mm x 2 pcs
Fan Dimension
Ø 60x10mm
Fan Speed
2000rpm
Noise Level
18dBA
Life Expectation
50,000 hrs
Connector
4pin
Quick install connector
For 6.4mm ID (1/4”) tubing
For 9.5mm ID (3/8”) tubing
Weight
360 g
