Incredibly Quiet
Anti-Vibration Design
Long Life Enter Bearing
Maximum Cooling
Easy Installation

Incredibly Quiet

• Frameless fan: Differs from the traditional framed fans by reducing the backpressure and turbulence produced by the air hitting the side walls of traditional fans. As a result, the frameless fans are much quieter than the traditional fans.
• Unique fan blade design will also produce less noise due to reduced backpressure.
• Enter bearing: The oil from the traditional sleeve bearing will evaporate over time and allow more friction between in the bearing unit itself, producing noise and shortening the lifetime of the fan. The enter bearing design allows extra oil capacity to elongate the life of the fan and reduce noise levels.

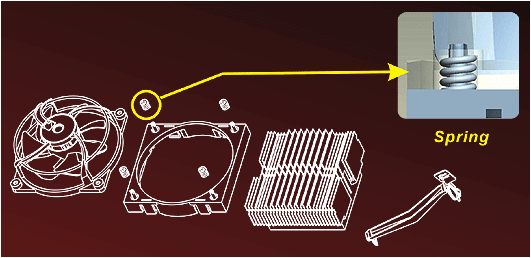

Anti-Vibration Design




• The TMG CPU coolers have built-in springs to absorb any vibrations created during the fan operation, this prevents the heatsink and clip from damaging CPU through vibration, also extends the lifetime of CPU.

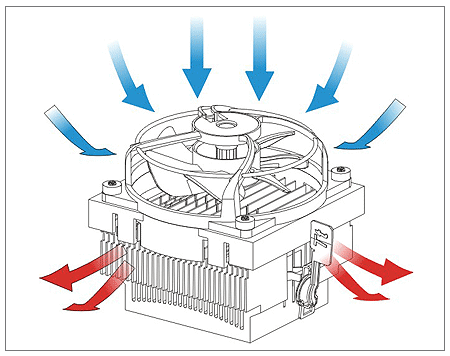

Maximum Cooling

• The high density heatsink fins significantly increase the surface area for cooling; combined with a high airflow fan, the improvement is drastic.

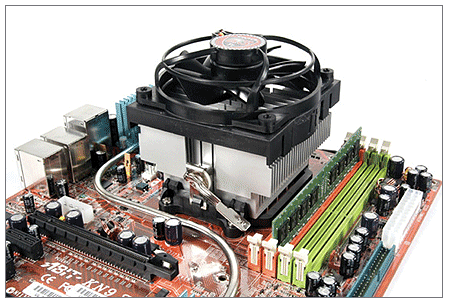

Easy Installation

• Easy to install without removing motherboard
Enter Bearing

• The fan’s enter bearing design creates additional oil capacity within the fan bearing and seals up the bearing even more than the traditional sleeve bearing. The lifetime of the fan is then extended due to better lubrication and less friction.
6 year limited warranty


Application
TMG A3 Thermal Flow




Compatibility AMD Athlon 64 X2 (Socket 939, AM2)
AMD Athlon 64 FX (Socket 939, AM2)
AMD Athlon 64 (Socket 754, 939, AM2)
AMD Sempron (Socket 754, AM2)
Dimension 102(L) x 102(W) x 94(H)mm
Heatsink Material Aluminum extrusion
Fan Dimension 92(L) x 92(W) x 32(H)mm
Rated Voltage 12 V
Fan Speed 2000RPM
Max. Air Flow 28.11 CFM
Noise Level 16 dBA
Life Expectation 50,000 Hours
Connector 3-Pin
Weight 480g
