Incredibly Quiet |
|
Anti-Vibration Design |
|
PWM Speed Control Function |
|
Long Life Enter Bearing |
|

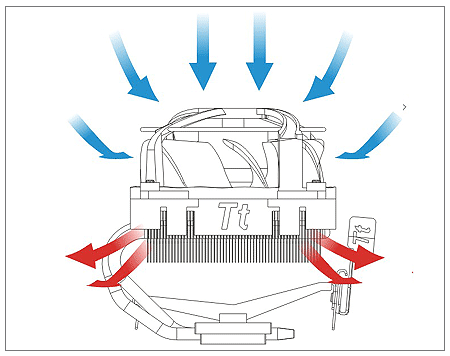

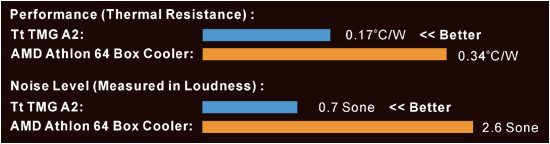

Maximum Cooling |
|
Easy Installation |
|
Incredibly Quiet |
| |
• Frameless fan: Differs from the traditional framed fans by reducing the backpressure and turbulence produced by the air hitting the side walls of traditional fans. As a result, the frameless fans are much quieter than the traditional fans. |
• Unique fan blade design will also produce less noise due to reduced backpressure. |
• Enter bearing: The oil from the traditional sleeve bearing will evaporate over time and allow more friction between in the bearing unit itself, producing noise and shortening the lifetime of the fan. The enter bearing design allows extra oil capacity to elongate the life of the fan and reduce noise levels. |
• PWM controller: The fan supports AMD PWM FSC specifications which allows the fan to be automatically adjusted via the motherboard BIOS. According to the temperature of the CPU, the fan will spin at whatever speed is necessary to reduce unnecessary noise.
|
|
Anti-Vibration Design |
| |

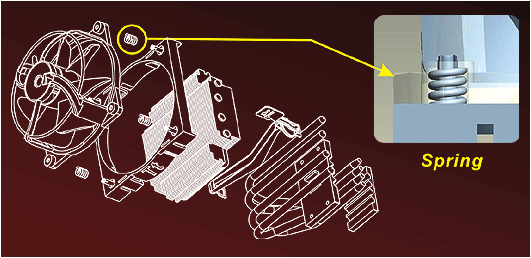

• The TMG CPU coolers have built-in springs to absorb any vibrations created during the fan operation, this prevents the heatsink and clip from damaging CPU through vibration, also extends the lifetime of CPU.
|
|
|
| |
• Four heatpipes can efficiently deliver the heat from the CPU directly to the dissipation fins.
|
| |
• The high density heatsink fins significantly increase the surface area for cooling; combined with a high airflow fan, the improvement is drastic.
|
|
|
| |
• Easy to install without removing motherboard |
|
Enter Bearing |
| |
|
• The fan’s enter bearing design creates additional oil capacity within the fan bearing and seals up the bearing even more than the traditional sleeve bearing. The lifetime of the fan is then extended due to better lubrication and less friction. |
|
|
6 year limited warranty |
|
|
 |
Detail Features |
|
 |
Copper base |
 |
High density fins |
 |
|
 |
Tool-free clip |
 |
Heatpipes |
|
|
| |
|

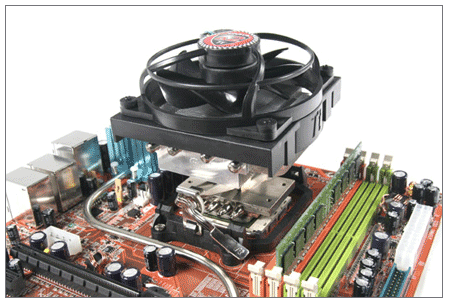

Application |
|
|
|
TMG A2 Thermal Flow |
|
|
|
| |
 |
| Compatibility |
AMD Athlon 64 X2 (Socket 939, AM2)
AMD Athlon 64 FX (Socket 939, AM2)
AMD Athlon 64 (Socket 754, 939, AM2)
AMD Sempron (Socket 754, AM2) |
| Dimension |
115(L) x 102(W) x 103(H)mm |
| Heatsink Material |
Copper Base / Aluminum Fin |
| Heatpipe |
ø6mm x 4 |
| Fan Dimension |
92(L) x 92(W) x 32(H)mm |
| Rated Voltage |
12 V |
| Fan Speed |
300~2500RPM(PWM) |
| Max. Air Flow |
35.14 CFM |
| Noise Level |
16 dBA |
| Life Expectation |
50,000 Hours |
| Connector |
4-Pin PWM function |
| Weight |
385g |
|
|
|
 |
|
|
 |
|
|
