Incredibly Quiet
Anti-Vibration Design
PWM Speed Control Function
Long Life Enter Bearing

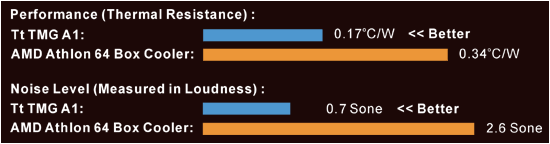

Maximum Cooling
Easy Installation

Incredibly Quiet

• Frameless fan: Differs from the traditional framed fans by reducing the backpressure and turbulence produced by the air hitting the side walls of traditional fans. As a result, the frameless fans are much quieter than the traditional fans.
• Unique fan blade design will also produce less noise due to reduced backpressure.
• Enter bearing: The oil from the traditional sleeve bearing will evaporate over time and allow more friction between in the bearing unit itself, producing noise and shortening the lifetime of the fan. The enter bearing design allows extra oil capacity to elongate the life of the fan and reduce noise levels.
• PWM controller: The fan supports AMD PWM FSC specifications which allows the fan to be automatically adjusted via the motherboard BIOS. According to the temperature of the CPU, the fan will spin at whatever speed is necessary to reduce unnecessary noise.

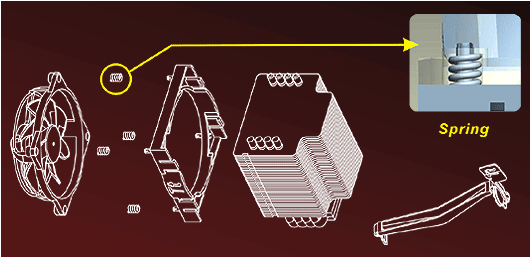

Anti-Vibration Design




• The TMG CPU coolers have built-in springs to absorb any vibrations created during the fan operation, this prevents the heatsink and clip from damaging CPU through vibration, also extends the lifetime of CPU.

Maximum Cooling

• Four heatpipes can efficiently deliver the heat from the CPU directly to the dissipation fins.


• The high density heatsink fins significantly increase the surface area for cooling; combined with a high airflow fan, the improvement is drastic.

Easy Installation

• Easy to install without removing motherboard
Enter Bearing

• The fan’s enter bearing design creates additional oil capacity within the fan bearing and seals up the bearing even more than the traditional sleeve bearing. The lifetime of the fan is then extended due to better lubrication and less friction.
6 year limited warranty


Detail Features
Copper base
High density fins


Heatpipes
Tool-free clip

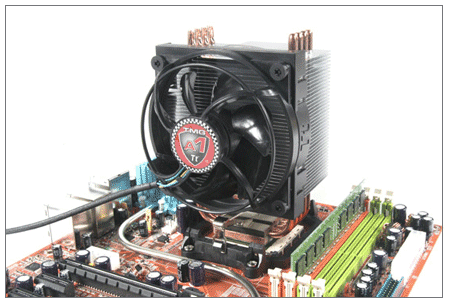

Application

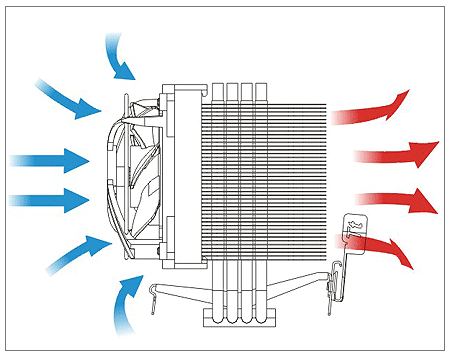

TMG A1 Thermal Flow




Compatibility AMD Athlon 64 X2 (Socket 939, AM2)
AMD Athlon 64 FX (Socket 939, AM2)
AMD Athlon 64 (Socket 754, 939, AM2)
AMD Sempron (Socket 754, AM2)
Dimension 117(L) x 102(W) x 141(H)mm
Heatsink Material Copper Base / Aluminum Fin
Heatpipe ø6mm x 4
Fan Dimension 92(L) x 92(W) x 32(H)mm
Rated Voltage 12 V
Fan Speed 300~2500RPM(PWM)
Max. Air Flow 35.14 CFM
Noise Level 16 dBA
Life Expectation 50,000 Hours
Connector 4-Pin PWM function
Weight 505g

Over View
Features
Specification
Specification
Specification
Specification
