- Tt Patented radian crotched fin design providing superior airflow.

- Incredible aluminum fin count:140 fins, maximizing heat dissipation area.

- Silent Fan with red LED, whispering 17dBA

- Universal design for Intel Socket LGA775 & AMD Socket 754/939/940/AM2.

Ruby Light

Side View

Top View

Base View

Crotched fin

Side View

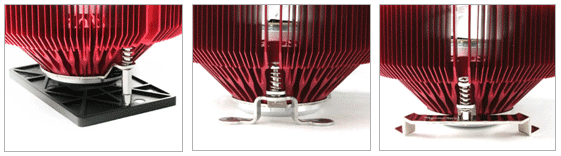

For K8

For AM2

For LGA775

CL-P0391

Compatibility

Intel Core^TM 2 Extreme(Socket LGA775)
Intel Core^TM 2 Duo (Socket LGA775)
Intel Pentium Extreme Edition (Socket LGA 775)
Intel Pentium D (Socket LGA 775)
Intel Pentium 4 (Socket LGA775)
Intel Celeron D (Socket LGA775)
AMD Athlon 64 X2 (Socket 939, AM2)
AMD Athlon 64 FX (Socket 939, AM2)
AMD Athlon 64 (Socket 754, 939, AM2)
AMD Sempron (Socket 754, AM2)

Heatsink Dimension

ø140mm x 73.3mm

Heatsink Material

Aluminum Extrusion (140 fin)

Fan Dimension

ø 120 mm x 24.3 mm

Rated Voltage

12V

Started Voltage

7V

Rated Current

0.25A

Power Input

3.00W

Fan Speed

1700 ±10% RPM

Max. Air Flow

77.85 CFM

Max. Air Pressure

1.80 mm H₂O

Noise

17 dBA

Life Time

30,000 Hours

Connector

3 Pin

Weight

545g
