home > products > Cooler > h.d. cooling



Built-in 80mm high performance/low noise DC FAN(2200RPM.21dBA).
Classic translucent design with fantastic shining blue LED.

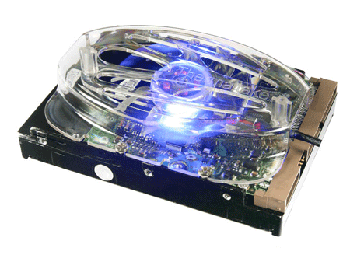

Simple installation.
Application for all standard 3.5” HDD (IDE, SCSI, SATA, SAS interface).
Lowers Hard Disk Drive operating temperature to achieve maximum performance, reliability

and longer MTBF (Mean Time Between Failure)

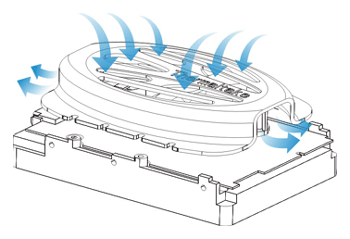

Air Flow Chart

Air Flow Chart


Product Name
Hard drive blue LED cooler
P/N
A2427
Fan Dimension
80 x 80 x 15 mm
Started Voltage
6 V
7 V Max
Rated Current
0.16 A
Power Input 1.92 W
Fan Speed
2200 ± 10% RPM
Max. Air Flow
22 CFM
Max. Air Pressure
2.32 MM-H2O
Noise
21 dBA
Bearing Type
Sleeve
Life Expectation 30,000 hrs
Connector
Molex 4pin
Weight 110 g







Over View
Features
Specification
Specification
Specification
Specification
