home > products > Cooler > h.d. cooling



Aluminum alloy heat sink helps dissipate heat
Built-in 80mm high performance/low noise DC FAN(3200RPM.30dBA)
Simple installation
Application for all standard 3.5” HDD (IDE, SCSI, SATA, SAS interface)
Lowers Hard Disk Drive operating temperature to achieve maximum performance, reliability and longer MTBF (Mean Time Between Failure)




INSTALLATION






Product Name

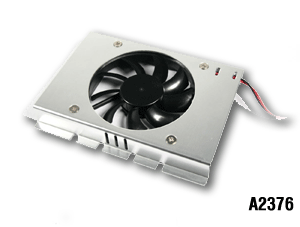

Hard drive cooler
P/N
A2376
Fan Dimension
80 x 80 x 15 mm
Started Voltage
6 V
7 V Max
Rated Current
0.26 A
Power Input 3.12 W
Fan Speed
3200 ± 10% RPM
Max. Air Flow
32 CFM
Max. Air Pressure
3.5 MM-H2O
Noise
30 dBA
Bearing Type
Sleeve
Life Expectation 30,000 hrs
Connector
Molex 4pin
Weight 110 g



Over View
Features
Specification
Specification
Specification
Specification
