home > products > chassis > full tower >




Patent Information
Country Patent No.
Taiwan
M 280094

Full tower case with built-in liquid cooling system
High performance 120 x 240 mm Racing Level Radiator (Louvered Fin) with dual 120mm blue Led fan the the case front
Utilize thermal concept of automobile and place radiator in front of computer chassis
Dimple Tube Technology provided the high density thermal surface on the fin and greatly enhances the thermal efficiency.

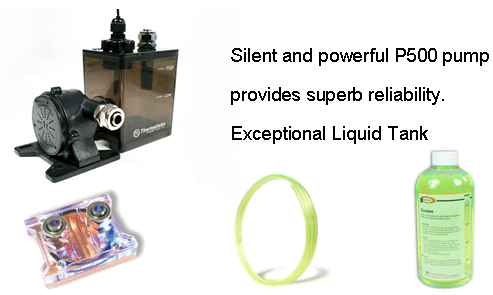

DC 12V P500 Pump -Superb Liquid Pump with 500 L/hr.
ATX/BTX compatible (BTX upgrade kit is optional)




Liquid Cooling System


Integrated liquid cooling system (radiator, pump, tank, water-block, tube)


Up to 3.5” x 7 HDD Installation

Exclusive 120 x 240mm Radiator



Second-to-none
Copper Water Block
Durable 3/8” Tube
Coolant



VGA Liquid Cooling Upgrade

Armor LCS supports any future graphic card liquid cooling upgrade,
even nVIDIA SLI and ATi Crossfire.
Recommendation:
Aqua Brazing All Copper series – W2
P/N: CL-W0088
VGA Water Block
P/N: CL-W0038



Appearance
Extra large thumb screws for easy open side panel 240mm radiator with dual 120mm fan
Side panel lock Retractable foot stand
Cable Management Rounded Edges
Relocate-able front control panel

Removable HDD cage
Tool-free installation for 5.25’’ device Screwless slots for easy assembling
Dual USB 2.0, IEEE 1394 Firewire, Audio & Speaker ports

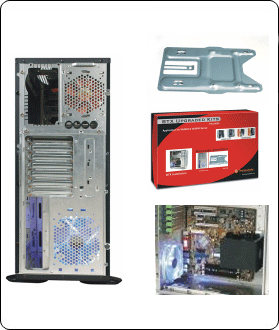

BTX upgraded kit (option : A9358)
Mounting holes for pump and water tank
EMI Protection


Fan Allocation
Air Cooling System: Front (intake) :
‧240 x 120 x25 mm blue LED fan, 1300rpm, 17dBA
‧Rear (Exhaust) : 120 x 120 x25 mm blue LED fan, 1300rpm, 17dBA, 90 x 90 x 25mm, 1800rpm, 19dBA
‧Top (Exhaust) : 90 x 90 x 25mm, 1800rpm, 19dBA


Pre-drilled Tube Fittings
Although the Armor LCS has a liquid cooling system built in, the back of the chassis still has the pre-drilled holes for any future upgrades.

Top Ventilation
The Armor LCS has a number of honeycombed openings on top of the chassis. Not only will the heat from the system components blow right out from the top, it makes the chassis look extremely stylish and wholesome.



Model VE2000BWS
Case Type Full Tower Built-in Liquid Cooling System
Side Panel Transparent Window
Net Weight 21.08 kg
Dimension (H*W*D) 530 mm x 220 mm x 560 mm
Cooling System Front (intake) :
Dual 2400x120x25mm, 1300rpm, 17dBA Blue LED fan
Rear (exhaust) :
120x120x25mm, 1300rpm, 17dBA, Blue LED fan
90 x90 x25mm, 1800rpm, 19dBA
Top (exhaust)
90 x90 x25mm, 1800rpm, 19dBA
 Drive Bays
-Front accessible
-Internal
11 x 5.25”, 1 x 3.5” 10 x 3.5”
Material Chassis : SECC
Front bezel : Aluminum
Color Black
Expansion Slots 7
Motherboards Micro ATX,ATX,Extend ATX,BTX,BTX Upgrade Kits SRM/Rear plate(optional)
PSU Standard ATX PSII
I/O Ports USB 2.0 x 2, IEEE 1394 x 1, Audio & Speaker ports





Over View
Features
Specification
Specification
Specification
Specification
