Pithy aluminum front panel design |
|
Slim type DVD style and pithy aluminum front panel design |
 |
Built-in Media LAB kit with hot keys module : |
|

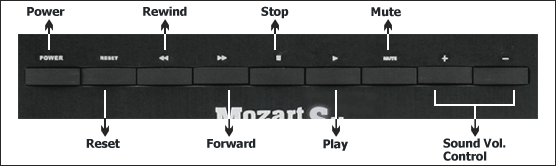

1. Media LAB Hot Keys function |
|
2. Media LAB application CD and remote control |
|
3. Media LAB VFD panel
|
|
Superb multimedia capability |
|
Full ATX & Micro ATX & Mini ITX compatibility |
|
Fits Standard PSII PSU |
|
Front I/O ports for easy access |
|
| |
|
| |
 Chassis Overview
|
|
 |
Bridge for Strengthening Case Structure
|
Fits Full Size ATX Motherboard
|
 |
 |
Ventilation Opening on Side
|
Front View
|
 |
|
VC7001SNS |
|
|
| |
|
Recommendation |
|
 |
Most Suitable for Mozart SX: Silent Fan with blue LED, 17dBA only. The height is 63mm only. Radiate aluminum golden fin provide sufficient air flow. Copper core touches the heat center directly and conducts heat quickly. Universal design for Intel P4 LGA775 & AMD K8. |
|
| |
|
Multimedia Kit (optional)
|
|
 |

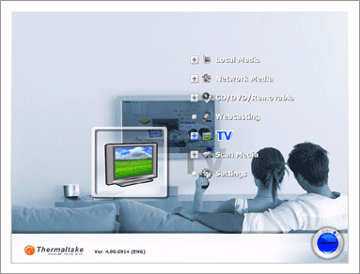

Multimedia Kit Application
CD Language Support :
English, Traditional Chinese,German, French, Japanese, Korean…12multi languages
OS Support :
Windows 98, Windows Me, Windows 2000, Windows XP |
| Application CD |
|
 |

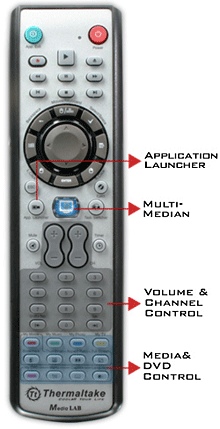

IR remote control |
 |
MUSIC :
Multi-Median supports famous music file
formats like MP3, OGG, WMA and WAV.
User can manage huge amount of music files according to its folder, album, artist and genre. |
 |
MOVIE :
Multi-Median supports famous video file
formats like WMV, AVI(DivX and XviD), ASF, MPG, MPEG, M1V, M2V and DAT. |
|
|
 |
PHOTO :
Multi-Median supports every image files formats like BMP, GIF, JPG, TIFF and PNG.
User can enjoy the slideshow of image files with background music. |
 |
TV :
Multi-Median can show and record the TV channels.
Multi-Median supports every kind of WDM TV card. |
|
|
 |
Digital Camcorder :
Multi-Median supports the DV Digital Camcorder which is connected through IEEE1394 port of PC.
You can control digital camcorder by remote controlr. |
 |
SETTING :
User can change the background skin,
assign media folders and devices, and set various options of Multi-Median. |
|
| |
 |
If you are using a Micro ATX motherboard, an optional upgrade kit A2423 is offered to easily install to your system. A2423 upgrade kit(optional): the kit contains PCI-E riser card and PCI riser card.
Installation Guide |
 |
|
| Model |
VC7001SNS |
| VFD Module |
Built-in Media LAB kits |
| Case Type |
Slim ATX Media PC Case |
| Net Weight |
8.8 kg |
| Dimension (H*W*D) |
90 x 470 x 440 mm |
| Cooling System |
Dual 80mm fan in the side and front |
Drive Bays
-Front Accessible
-Internal |
4
1 x 5.25",1 x 3.5"
2 x 3.5" |
| Material |
Chassis:0.8 mm SECC |
| Color |
Silver |
| Expansion Slots |
3 |
| Motherboards |
Full Size ATX, Micro ATX, Mini ITX |
| PSU |
Fits Standard ATX PS II PSU |
|
|
 |
|
|
