RAID
LAN


Storage Center

● Share the contents via network.
● Expand the storage via USB or card reader.
Support RAID 0, 1, 5, 5+Spare, 10, Linear.

● Networks easily and fast via the Gigabit Ethernet.

● Supports all the major file serving protocols including CIFS, NFS, HTTP and FTP.
RAID Configuration

● Configures your system with two different RAID modes by HW RAID 0, 1

● Provides up to 1.5TB of storage capacity by using 750 GB HDD.

● RAID 1 configuration can prevent data lost if one HDD malfunctions.
Remote management
  ● Supports web user interface for configuration, setting and management.
  No IP setting required
  ● Supports DHCP, Auto IP and Static IP
Media Server
  ● Supports UPnP and DLNA.
  ● Streams your video, music, and photo contents to TV or stereo via DMA.
FTP Server
  ● Allows users to remote access the data.
OTB Function
  ● Backup files from digital camera, mass storage, SD/MMC/MS card via USB port or card reader.
iTunes Jukebox
  ● iTunes' users within the LAN can search and play music from Muse X-Duo RAID.

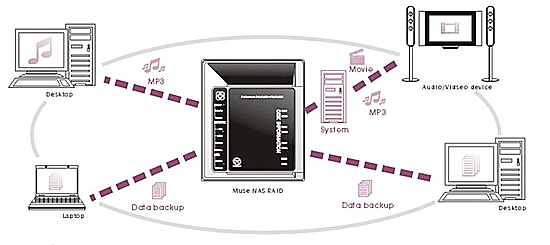

Digital Home Entertainment Scenario
What 1.5TB Could Holds

Up to 426,000 digital photos. (based on 3.5MB per photo)

Up to 375,000 songs. (MP3)(based on 4 minutes per song, 128kbps rate)

Up to 36,000 songs. (uncompressed CD quality) (based on 1:1 audio compression ration)

Up to 114 hours of Digital Video (DV) (based on 3.5MB per second, 12.6GB per hour )

Up to 600 hours of DVD quality video. (based on data rate of 5Mb per second, 2.25GB per hour)

Up to 180 hours of HD video. (based on 8.3GB per hour)
The results will vary based on file size and format, settings, features, software and other factors.) Total accessible capacity varies depending on operating environment.


Muse X-Duo RAID- RAID Function Introduction
RAID 0
Data can be separated and distributed across several different physical disks; some bytes are written to one disk, and the other bytes are written to another. This mode provides the highest performance without any redundancy.
RAID 1
All the data wirtten to the one disk is duplicated on the other disk. This mode provides greater data protection since if one disk fails, all your data still intact on the other disk.
BIG
Several physical disks combined as a logical disks. In other words, the capacity of the logical drive is the total capacity of the physical drives. This mode doesn't provide redundancy.
Linear
Individual disk. This mode doesn't provide redundancy.

Muse X-Duo RAID System Management Software
Muse X-Duo RAID software is a professional management program, it has a friendly setup interface with option list design. Without complicated installation process, and is very convenience for user to manage NAS system.


Cooling System
Muse X-Duo RAID software is a professional management program, it has a friendly setup interface with option list design. Without complicated installation process, and is very convenience for user to manage NAS system.

Appearance

(a) MAX4 serigraphy.
(b) Aluminum case.
(c) Vent holes design.
(d) LED light.
(e) USB 2.0 high speed port.
(f) eSATA port.
(g) Power port.
(h) Power switch.
(i) Foot stand
(j) 80x80x15mm Fan


I/O Port Description

(a) MAX4 serigraphy.
(b) Aluminum case.
(c) Vent holes design.
(d) LED light.
(e) USB 2.0 high speed port.
(f) eSATA port.
(g) Power port.
(h) Power switch.
(i) Foot stand
(j) 80x80x15mm Fan



Model Name
Muse X-Duo RAID
System Memory
DDR2 128MB
Flash Memory
8MB
Max. HDD Bay / Type
HDD 3.5” with SATA Interface * 2
Max. Storage Capacity
Up to 1.5 TB by using 750 GB HDD
RAID Level
RAID 0, 1, BIG, Linear
Network
Auto MDIX Ethernet Port ( 10/100/1000 Mbps)
Front I/O
USB 2.0 * 1
LED indicators * 6
One Touch Button *1
Card Reader (For MMC, SD, MS Card)
Rear I/O
RJ-45 * 1
DC power input * 1
Reset to default button * 1
USB 2.0 * 2
Power switch *1
Power
DC12V/5A
Operating Environment
Temperature: 0 ~ 40 degree C
Humidity: 5 ~ 90 % RH
Dimension
120 mm x 140 mm x 240 mm
Weight
1.8Kg
Network Protocol Supported
TCP/IP, HTTP, FTP, SMB/CIFS
Network Client Supported
Microsoft Windows, UNIX/Linux
Application for NAS Management
Supports Web user interface for Configuration, Browser supports IE6.0 above and FireFox 2.0
Data sharing, protection
Multiple Language
Supports English
Home media server
Provides to be home media sever (DLNA v.1.0)
iTunes Jukebox
*Enables iTunes and Roku Sound Bridge to access Muse X-Duo RAID automatically
*iTunes' and Roku's users can from Muse X-Duo RAID collection
FTP server
Can act as an FTP server
USB device
Support USB device for Mass Storage, Printer and Still Image
OTB
Backup files from Digital camera, Mass storage, Card reader
Hot Swap and Auto Rebuild
Support
Others
Event logs and Email alert
Reset button to factory default
Firmware upgradeable
Real Time Clock (RTC)
Programmable system clock
Certification
CE, FCC, CUL, BSMI
Accessory
Package
Warranty Card / User Manual/CD , etc.
Power cord
