home > productsstorage > Accessories

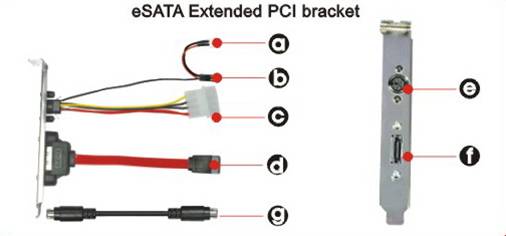

a. HDD LED connector to chassis LED
b. HDD LED connector to Motherboard
c. Power connector
d. SATA Port
e. Power Port (Only fits Thermaltake Storage System)
f. eSATA port (Universal version)
g. Power cable (Only fits Thermaltake Storage System)

Extra shielding layer to reduce EMI
Recessed connector to prevent ESD (Electrostatic Discharge)
Fully support hot-plug. (Motherboard or controller also have to support).
Provides easy way to replace, upgrade or expand storage without downtown
Native SATA interface at 3Gbps transfer rates also supports Native Command Queuing (NCQ) to get the most performance from PC technology
Up to 6 times faster than USB2.0 & IEEE1394

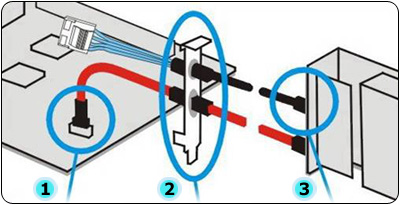

Installation
Connect to Mainboard’s SATA port
eSATA PCI extended bracket. Convert SATA to eSATA

Power Cable (Only fits Thermaltake Storage System)




Note:
1. The Power connector only fits Thermaltake eSATA Storage System.
2. The eSATA Port is universal for all standard external SATA Storage System.
