Litepower 400W P/N:W0161/W0162

home > products > power > Litpower

	Intel ATX 12V 2.0 Compatible.
	6-pin PCI-E connector included to support high-end graphic card.
	Dual +12V output circuit provides steady output for system.
	Super quiet and stable 12cm sleeve bearing fan.
	Build-in Over Current Protection, Over Voltage protection, and Short-Circuit protection.
	Safety : UL, CUL, CE, NEMKO, TUV+CB, BSMI, FCC certification.

	Total Output Connector :

20+4-pin Main
Connector X 1

4-pin +12V Power
Connector X1

4-pin Peripheral
Connector X 6

4-pin Floppy
Connector X 1

6-pin PCI Express
Connector X 1

5-pin SATA
Connector X 2

	Technology Features :

Silent & High thermal performance 12 cm Fan

PCI-Express Connector

	Output :

OUTPUT
	+5V	+3.3V	+12V1	+12V2	-12V	+5VSB
Max. Load	25A	18A	14A	16A	0.3A	2.5A
Min Load	0.5A	0.3A	1.0A	1.0A	0.0A	0.1A
Peak load	--	--	16A	18A	--	3.5A
Load Reg.	±5%	±5%	±5%	±5%	±10%	±5%
Ripple & Noise	70 mV	70 mV	150 mV	150 mV	200 mV	70 mV

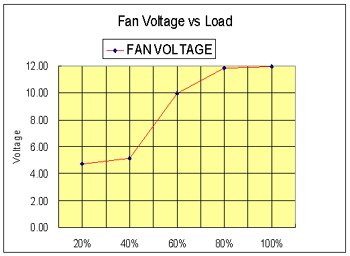

	Thermal performance:

P/N	W0161	W0162
Maximum Power	400 Watts
Color	Silver
Switches	ATX Logic on-off additional power rocker switch
P. G. Signal	100-500 ms
PFC (Power Factor Correction)	PFC	N/A
Cooling System	One 12cm Fan: SPEED : 2400 RPM(+/-10%) DIMENSION : 120 x 120 x 25 mm AIR FLOW: 77.5 CFM TEMP. AUTO CONTROL
Over Voltage Protection	+5V output : 7.0 Vmax +3.3V output : 4.5 Vmax +12V output : 15.6 Vmax

DIMENSIONS
Unit Size	14cm(L)x15cm(W)x8.6cm(H)
Net Weight	1.6 Kg

INPUT
Input Voltage	115 VAC ~ 230 VAC
Input Frequency Range	50 / 60 Hz
Input Current	10.0A / 5.0A
Hold-up Time	10ms(minimum) at Full Load
