ATX
12V 2.3 |
EPS 12V |
AMD / Intel
Quad Core Support |
Quad
GPU
Ready |
PCI Express
Connectors
X8 |
S-ATA
Connectors
X8 |
|
|
Intel ATX 12V 2.3 and EPS 2.91 compatible |
|
Stable 1500W continuous output, peak power at 1600W (at 50℃ operating environment) |
|

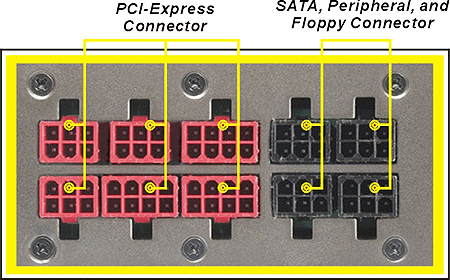

Four 8pin and four 6pin PCI-E connectors design supports multiple high-end graphic card setup |
|
Support Dual core CPU, Quad core CPU, NVIDIA SLI and all Multi-Core GPU Technology |
|
Four independent +12V rails provides superior performance |
| |
(Total Combined load of +12V is 120A) |
|
Modularized Cable Management to eliminate clutter and improve airflow inside the case. |
|
Active Power Factor Correction (PF>0.99) and high efficiency (up to 87%). |
|
Industrial grade components (capacitor, transformer, etc) |
|
High reliability: MTBF>120,000 hours |
|
Quiet and reliable 14cm ball-bearing fan. |
|
Protections: Over Current, Over Voltage, Under Voltage, Over Temperature, |
|
Over Power, and Short-Circuit protection. |
|
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified. |
|
| |
|
| |
|
Model |
W0171 |
Power |
1500W |
Dimension |
200mm(L)x150mm(W)x86mm(H) |
Switches |
ATX Logic on-off additional power rocker switch |
PFC |
Active PFC (PF > 0.9) |
Cooling System |
140mm Fan, 2300RPM ± 10% |
Noise |
16 dBA at 1300 RPM |
P. G. Signal |
100-500 ms |
Efficiency |
up to 87% |
Hold-up Time |
16ms |
INPUT |
Input Voltage |
230 Vac |
Input Frequency Range |
47 ~ 63 Hz |
MTBF |
120,000 hrs minimum (at 25 ℃) |
Input Current |
10A |
ENVIRONMENT |
Operating Temp. |
10 ℃ to 50 ℃ |
Storage Temp. |
-20 ℃ to 70℃ |
Operating Humidity |
20% to 90%, non-condensing |
Storage Humidity |
5% to 95%, non-condensing |
PROTECTION |
|
DC rail |
Trigger Point/Range |
Over Voltage Protection |
+3.3V trip point |
4.5 Vmax |
+5.0V trip point |
7.0 Vmax |
+12.0V trip point |
15.6 Vmax |
Over Current Protection |
+3.3V |
33A ~ 50A |
+5.0V |
33A ~ 50A |
+12V1 & +12V2 |
22A ~ 35A |
+12V3 & +12V4 |
42A ~ 60A |
Under Voltage Protection |
+3.3V trip point |
2.0 Vmin |
+5.0V trip point |
3.3 Vmin |
+12.0V trip point |
8.5 Vmin |
Short Protection |
All output to GND |
OUTPUT |
Voltage |
+12V1 |
+12V4 |
+3.3V |
+12V2 |
+12V3 |
+5V |
-12V |
+5Vsb |
Max load |
20A |
40A |
30A |
20A |
40A |
30A |
0.8A |
3.5A |
Min load |
1A |
1A |
0.5A |
1A |
1A |
0.5A |
0A |
0A |
Ripple & Noise |
240mV |
240mV |
100mV |
240mV |
240mV |
100mV |
240mV |
100mV |
Regulation |
+3,-3%
|
+3,-3% |
+3,-3%
|
+3,-3% |
+3,-3% |
+3,-3% |
+10,-10% |
+3,-5% |
Max output power |
750W |
750W |
9.6W |
17.5W |
Total power |
1500W |
Peak Power |
1600W |
* Add 0.1uF and 47uF capacitors across output terminal during ripple & noise test. |
|
|
|
|
 |
|
|
