Toughpower 850

home > products > power > toughpower



12V Combined Output 62A	AMD / Intel Dual Core Support	ATX 12V 2.2	EPS 12V	PCI Express Connectors X4	S-ATA Connectors X8

	Stable 850W continuous output (at 50℃ operating environment)
	Four independent & dedicated +12V rails(12V1,12V2,12V3,12V4) provides superior
	performance for PC system (combined loading of 62A).
	Built in two 6pin and next generation two 8pin PCI-E connectors for Multi-GPU Graphic Cards.
	Supports Dual Core CPU / Quad Core CPU / Nvidia SLI & Quad SLI and all Multi-Core
	GPU technologies.
	Modularized Cable Management to eliminate clutter and improve airflow inside the case.
	Independent Voltage Circuit: offers unflappable current delivery under heavy load.
	Strict voltage regulation (±3%): provides steady voltage for system.
	Active Power Factor Correction (PF>0.99) and high efficiency (up to 87%).
	Industrial grade components (capacitor, transformer, etc)
	High reliability: MTBF>120,000 hours.
	Quiet and reliable 14cm ball-bearing fan.
	Protections: Over Current, Over Voltage, and Short-Circuit protection.
	Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.

	Total Output Connector:

24-pin Main Connector X1 & 6-pin PCI-Express Connector X 2

6-pin PCI Express Connector X 2

4-pin / 8-pin +12V Power Connector X 1

4-pin Peripheral Connector X 8 & Floppy Connector X 2

5-pin S-ATA Connector X 8

8-pin to 6-pin PCI-E Connector X 2

	Technology Features:


Quad +12V Rails and EPS Structure

Nickel Black Housing

Eight S-ATA Connectors

Silent 140mm Fan

Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%

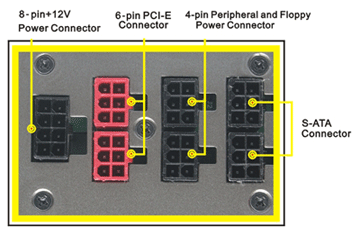

	Embedded Socket Design:

	Performance:

OUTPUT
Voltage	+3.3V	+5V	+12V1	+12V2	+12V3	+12V4	-12V	+5VSB
Max. Load	30A	30A	18A	18A	30A	30A	0.8A	3A
Min Load	0.5A	2.0A	1.0A	1.0A	1.0A	1.0A	0A	0A
Peak Load	--	--	--	--	--	--	--	3.5A
Load Reg.	+3,-3%	+3,-3%	+3,-3%	+3,-3%	+3,-3%	+3,-3%	+9,-5%	+3,-3%
Ripple V(p-p)	50 mV	50 mV	240 mV	240 mV	240 mV	240 mV	120 mV	50 mV

Model	W0131
Maximum Power	850 Watts
Color	Black
Switches	ATX Logic on-off additional power rocker switch
PFC (Power Factor Correction)	Active PFC
Cooling System	14 cm Fan SPEED: 2300 RPM (±10%) DIMENSION: 140 X 140 X 25 mm BEARING TYPE: Two ball-bearing AIR FLOW: 105 CFM TEMP. AUTO CONTROL
Noise	16dB at 1300RPM
P. G. Signal	100-500 ms
Over Voltage Protection Recycle AC to Reset	+5V 7.0 Vmax +3.3V 4.5 Vmax +12V 15.6 Vmax
Dimensions	16cm(L)x15cm(W)x8.5cm(H)
Net Weight	2.4 kg
Input Voltage	100 VAC~240 VAC
Input Frequency Range	47 ~ 63 Hz
Input Current	115VAC / 12A max 100VAC / 6A max
Hold-up Time	16ms
Efficiency	up to 87%
