The ingenious Modularized Cable Management and Power Station that allows you to arrange cables easier and smarter.
5.25 P.S.T fits any 5.25 driver bay and offer various connectors for all peripheral devices.
Mini P.S.T offers convenient output for devices and accessories at various location.
Blue LED around 5.25 P.S.T socket to illuminate your system.
Rubber Sleeved Cable increase air flow and decrease clutter inside the chassis.
Active PFC, improve energy efficiency and reduce current load on AC delivery systems.
Protections against Over Power, Short-Circuit, Over-current, Overload, and Over-temperature.
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CSA, and CUL certification (For Active PFC). FCC, UL, CUL, CSA certification (For Non PFC)
Dual 6-pin PCI-Express connectors for High-end VGA card.
Detail Information
Technology Features
5.25 P.S.T easy to connect for peripheral devices such as Hard Driver,
DVD Burner, etc.
Mini P.S.T easy to connect for case fan,
case light, etc.
Embedded Socket design for 5.25 P.S.T, Mini P.S.T, and
PCI-Express graphic card.
Total Output Connector
24(20)-pin
Main Connector X1
4-pin+12V
Power Connector X1
8 pin Power C onnector from PSU to 5.25
Power Station X1
4 pin Power C onnector from 5.25
Power Station
to mini Power Station X1
4-pin Peripheral 1 to 3 Power Connector X2
4-pin Peripheral 1 to 1
Power Connector X3
4-pin Floppy Drive
Connector X2
5-pin SATA Connector X4
6-pin PCI
Express Connector X2
Embedded Socket Design
6-pin PCI Express Connector
8-pln Power Connector from PSU to
5.25 Power Station
Power Station Design

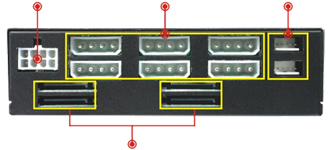

5.25"Power Station
8-pin Power Connector From
PSU to 5.25
Power Station
4-pin Peripheral Power Connector
4-pin Floppy Drive Connector
5-pin SATA Connector

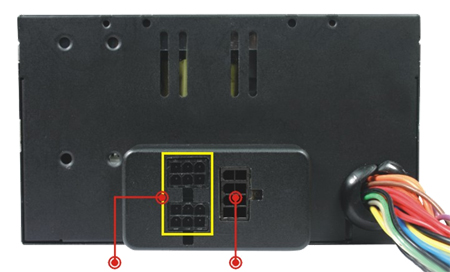

Mini Power Station
4-pin Power Connector From
5.25 Power Station to Mini
Power Station
4-pin Power Connector
3-pin Power Connector
Application for PC System
Embedded socket for
PCI-Express graphic card
Bridge 1: 5.25 P.S.T
Bridge 2: Mini P.S.T
Performance
OUTPUT
+3.3V
+5V
+12V1
+12V2
-12V
+5VSB
Max.
Load
30A
30A
15A
15A
0.3A
2.0A
Min.
Load
0.5A
1.0A
1.0A
1.0A
0A
0A
Load
Reg.
+5% ~ -5%
+5% ~ -5%
+5% ~ -5%
+5% ~ -5%
+10% ~ -10%
+5% ~ -5%
Ripple
V(p-p)
50mV
50mV
120mV
200mV
120mV
50mV
Purepower Power Station 520W
Fan RPM V.S Temp
Purepower Power Station 520W
Fan Voltage v.s Temp
P/N
W0073
W0074
Maximum Power
520 Watts
Switches
ATX Logic on-off additional power rocker switch(115/230 V selector switch)
Color
Black
PFC
(Power Factor Correction)
Active PFC
N/A
Cooling System
Blue LED 12 cm Fan:
SPEED : 2000 RPM(+/-10%)
DIMENSION : 120 x 120 x 25 mm
TEMP. AUTO CONTROL
Noise
17dB at 1300 RPM
P. G. Signal
100-500ms
Over Voltage Protection recycle
AC to reset
+5V trip point < +7.0V
+3.3V trip point < +4.5V
+12V trip point <+15.6V
Dimensions
Unit Size
15cm(L)x14cm(W)x8.6cm(H)
Net Weight
1.8 kg
1.5 kg
Input
Input Voltage
100 VAC / 240 VAC
Input Frequency Range
47 ~ 63 Hz
Input Current
8.0A/4.0A
Hold-up Time
16ms
Efficiency
> 70%
