Symphony Mini - CL-W0077

home > products > liquid cooling system > diy l.c.s. >



Copper Waterblock	Aluminum	120x120mm Fan

Patent Information
Country	Patent No.
Taiwan	M 268654

	Massive aluminum radiator
	Added surface area to allow high heat dissipation
	Brazing copper CPU waterblock
	Maximizes heat conductivity from heat source
	Apply to BTX and Intel P4 Socket 775, P4 Socket 478, AMD K8, AMD K7
	Dual pump with 90L /hr flow rate
	Liquid flow rate is increased significantly by implementing dual pump design; furthermore, it provides intense yet quiet and smooth liquid circulation
	More silent with high performance
	Three 1400 RPM Ultra-Quiet 120mm fans(16dB)，Dissipate the ambient thermal generated from the heat source

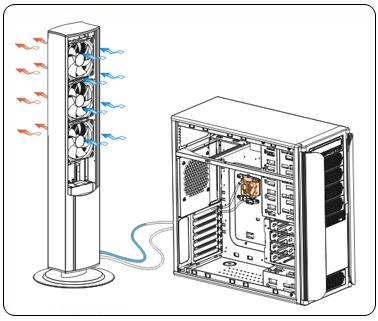

	Thermal Flow Chart

Thermal flow situation between Symphony mini and Armor Jr

- middle chassis

	Detail

All aluminum design
dissipate heat promptly

Liquid inlet and outlet
from the back panel

5 in 1 Universal pure copper CPU waterblock

Automatic non-spill valves,
robust material one hand
operation

ultra-quiet 1400 RPM
120mm fan x 3

5 in 1 all copper CPU
waterblock on mother
Board

Three 1400 RPM ultra-quiet 120mm fans

	Apply Symphony mini to Thermaltake’s serial chassis

Application A:

Combine Symphony mini with Armor Jr
- middle tower chassis

Application B:

You can combine Symphony mini with the recommended chassis below
that produced by Thermaltake

Super tower	Tai-Chi, Kandalf, Armor
Full tower	Shark
Middle tower	Swing ,Mambo, Tsunami, Soprano, Lanmoto

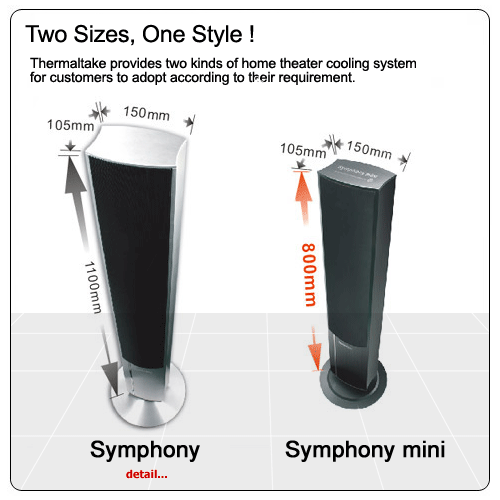

Modernly stylish

Home theater speaker appearance

Material

All aluminum

All aluminum radiator

120 mm (W) x 33mm(D) x 360 mm (H)

Gross weight

9 kg

Dimension

250 mm (W) x 250 mm (D) x 800mm(H)

5 in 1 universal CPU waterblock

●	Brazing copper waterblock
●	Enhanced universal clip for BTX, Intel P4 Socket 775, P4 Socket 478, AMD K8, AMD K7
●	User friendly installation

Dual 12V Pumps

Dual black powerful DC 12V water pumps (90 L/hr)

Cooling System

Three 1400 RPM ultra-quiet 120 mm fans(16dB)

Quick disconnect coupling

Automatic non-spill valves、robust material、one-hand operation

Maintenance free for liquid refilling

10,000 hours
