Improve air flow inside the case. |
|
Built in 80mm high performance low noise DC FAN(2200RPM.21dBA). |
|
Simple installation. |
|
Classic translucent design with fantastic shining blue LED.
|
| |
 |

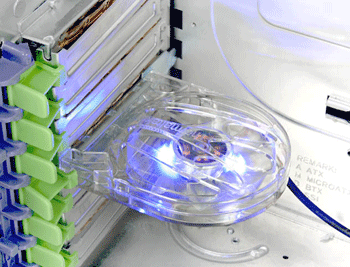

INSTALLATION |
|
|

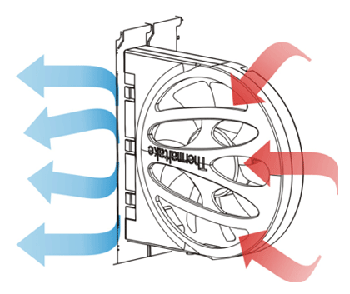

Air Flow Chart |
|
Product Name |
PCI SLOT Blue LED FAN
|
P/N |
A2426
|
Fan Dimension |
80 x 80 x15 mm
|
Started Voltage |
6 V / 7V Max
|
Rated Current |
0.16 A |
Power Input |
1.92W |
Fan Speed |
2200± 10% RPM |
Max. Air Flow |
22 CFM
|
Max. Air Pressure |
2.32 MM-H2O |
Noise |
21 dBA
|
Bearing Type |
Sleeve |
Life Expectation |
30,000 hrs
|
Connector |
Molex 4pin |
Weight |
88.3 g
|
|
|
 |
|
|
