Heatpipe Performance

	Internal Heatpipe Module brings heat from GPU directly
	High performance fanless GPU cooler, 0dB cooling solution, reduce total system noise
	No cooling fan is required, stay cool without suffering the fan noise
	Much better heat dissipation is delivered by larger heat sink surface
	Internal and external heatpipe modules dissipate the heat efficiently
	Universal clip for both nVIDIA and Ati (NOTICE: CL-G0009 does not support VGA card with HSI bridge chip)

Detail Information Larger heat sink surface, front and rear Internal HeatpipeModule brings heat directly External Heatpipe Module w/ copper fins Universal clip for nVIDIA and ATi Copper blocks contact to front/ rear heat sink base     Detail Layout

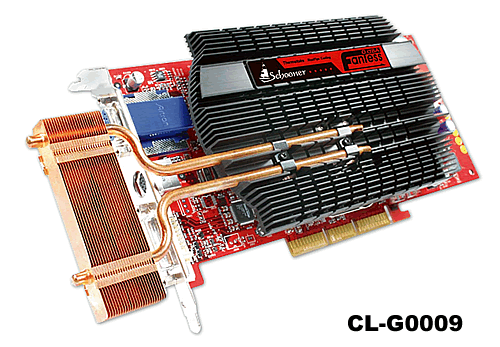

P/N	CL-G0009
Compatibility	Both nVIDIA / ATi video cards for AGP or PCI Express
Heatsink Material	Aluminum
Heatsink Dissipation Surface Area	Main front heatsink:1159cm Main back heatsink:446cm External heatpipe module:516cm
Heatpipe	Internal: 5mm x 2 and copper base External: 5mm x 2 and copper fins
Weight	514g

Notice! CL-G0009 does not support VGA cards with HSI bridge chip.
