Super Silent at 16dBA.

• Super quiet 60mm low speed fan .

• Unique 60mm fan blade design to optimize the airflow while keeping the noise
  at minimal .
Brazing Pure Copper Waterblock for maximum heat conductivity from

heat source.
Maximum & Effective Cooling

• Pure Copper Base for maximum heat conductivity from heat source.

• Advanced Brazing Technology enhances the thermal efficiency.

• Effective cooling for the GPU and the video card memory at the same time with
  bundled aluminum memory heatsink.
• Special fan shroud concentrates the airflow and focuses the air to the hotspot
Easy Installation

• Easy to install


Detail Features
Blower fan with special blade design : rotating extremely silent.
Brazing Pure Copper Waterblock
Flawless contact surface
Copper base with high performing thermal grease Dow Corning TC-5022
Industrial-Grade tube with EPOXY
Quick Install Connectors
Thermal pads give good contact between BGA memory and copper base which conduct heat quickly
Aluminum memory heatsink

Application

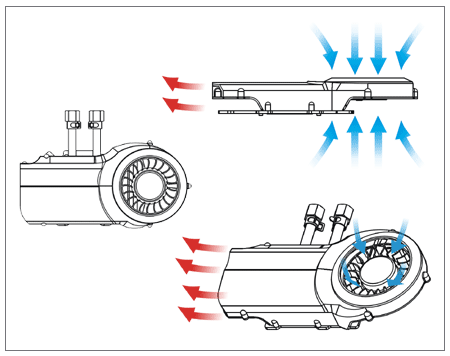

TMG ND3 Thermal Flow

Blue arrow: Cold air in
Red arrow: The heat to be took out

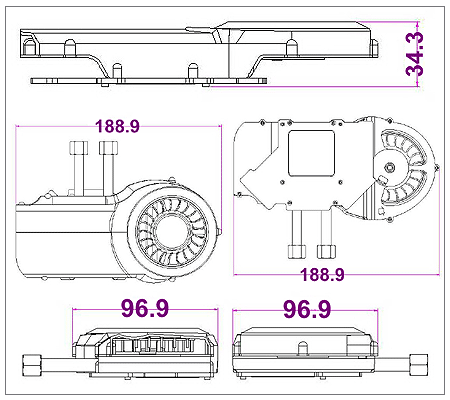

Dimension

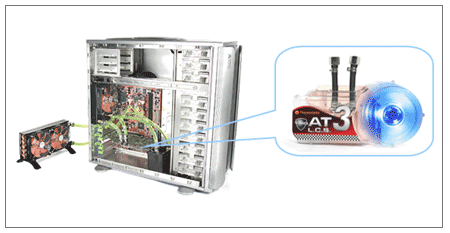

Upgrade your BigWater 745 with the TMG ND3

You can apply the TMG ND3 to fit into any Thermaltake liquid cooling system.
Please visit our website at www.thermaltake.com

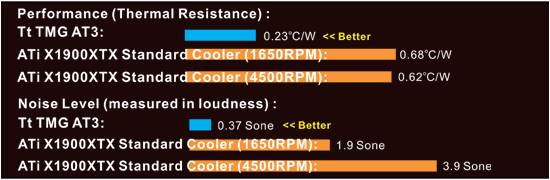

Maximum cooling




Compatibility ATi X1800 GTO/XL/XT
ATi X1900 GT/XT/XTX
ATi X1950 GXTX
Dimension 188(L)x95(W)x32.5(H)mm
Waterblock Material Brazing pure copper waterblock
Copper base Material Brazing pure copper base
Fan Dimension Ø 60x10mm
Fan Speed 1500rpm
Noise Level 16dBA
Life Expectation 50,000 hrs
Connector 4pin
Weight 366 g

Over View
Features
Specification
Specification
Specification
Specification
