TMG ND3 CL-W0119

Patent Information
Country	Patent No.
Taiwan	M302063

	Super Silent at 16dBA.
	• Super quiet 60mm low speed fan .
	• Unique 60mm fan blade design to optimize the airflow while keeping the noise at minimal .
	Brazing Pure Copper Waterblock for maximum heat conductivity from
	heat source.
	Maximum & Effective Cooling
	• Pure Copper Base for maximum heat conductivity from heat source.
	• Advanced Brazing Technology enhances the thermal efficiency.
	• Effective cooling for the GPU and the video card memory at the same time with bundled aluminum memory heatsink.
	• Special fan shroud concentrates the airflow and focuses the air to the hotspot
	Easy Installation
	• Easy to install

	Detail Features

Blower fan with special blade design : rotating extremely silent.

Brazing Pure Copper Waterblock

Flawless contact surface

Copper base with high performing thermal grease Dow Corning TC-5022

Industrial-Grade tube with EPOXY

Quick Install Connectors

Thermal pads give good contact between BGA memory and copper base which conduct heat quickly

Aluminum memory heatsink

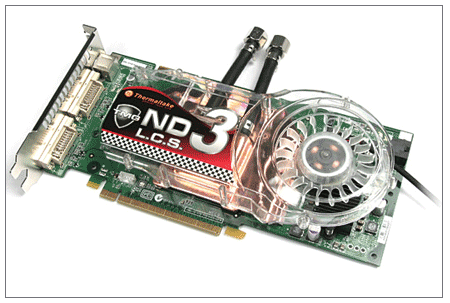

	Application

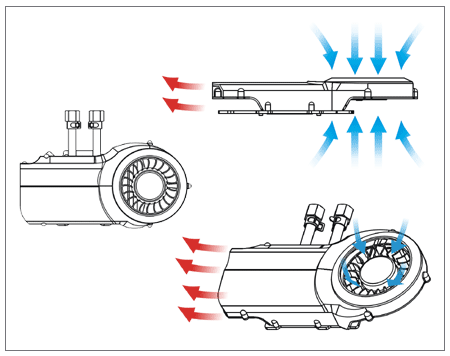

	TMG ND3 Thermal Flow

Blue arrow: Cold air in
Red arrow: The heat to be took out

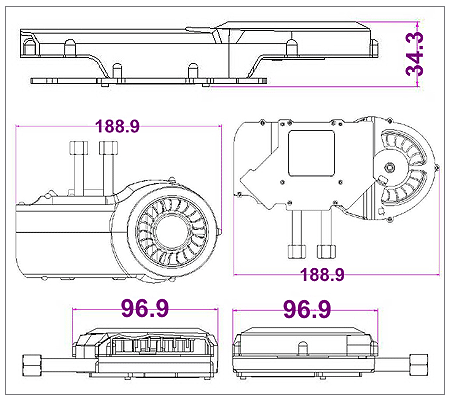

	Dimension

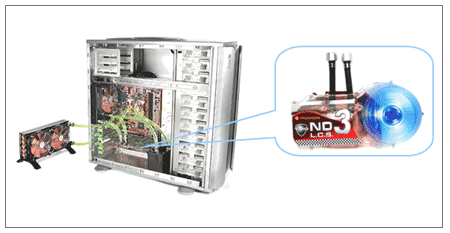

	Upgrade your BigWater 745 with the TMG ND3

You can apply the TMG ND3 to fit into any Thermaltake liquid cooling system.
Please visit our website at www.thermaltake.com

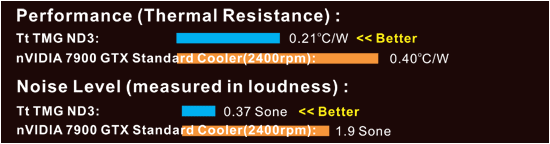

	Maximum cooling

Compatibility	nVidia 6800 Ultra nVidia 7800 GT / GTX nVidia 7900 GT / GTX
Dimension	188(L)x95(W)x32.5(H)mm
Waterblock Material	Brazing pure copper waterblock
Copper base Material	Brazing pure copper base
Fan Dimension	Ø 60x10mm
Fan Speed	1500rpm
Noise Level	16dBA
Life Expectation	50,000 hrs
Connector	4pin
Quick install connector	For 6.4mm ID (1/4”) tubing For 9.5mm ID (3/8”) tubing
Weight	362 g
