Super silent at 16dBA |
|
Effective cooling for the GPU and video card memory at the same time. |
|
2 Heatpipe for maximum heat transfer. |
|
 |
Detail Features |
|
 |
Exquisite soldering heatsink made by 2 Heatpipe, large copper base and perfect ratio aluminum fin. |
 |
Blower fan with special blade design : rotating extremely silent. |
 |
|
 |
High performance thermal grease w/ higher thermal conductivity: Dow Coming TC-5022 |
 |
Thermal Pad: Included thermal pads give good contact between BGA memory and large copper base which conduct heat quickly. |
|
|
|
| |
|

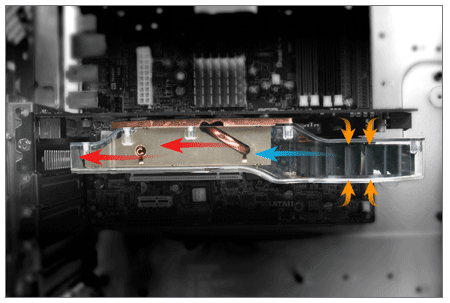

Unique Air-flow Pattern
|
|
Dual way air-intake increase air flow to achieve better cooling.
|
|
Enter Bearing
|
|
High performing Enter Bearing, decrease bearing wear Down and extends the MTBF(Mean Time Between Failures) of fan. |
| |
|

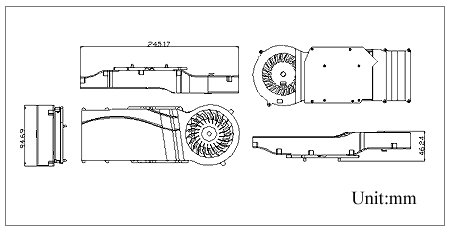

Dimension |
|
|
|

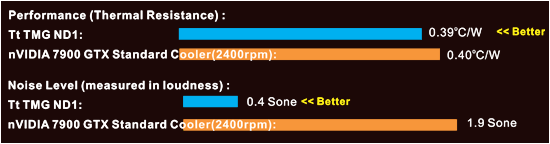

Maximum cooling |
|
|
|
| |
 |
| Compatibility |
nVidia 6800 Ultra nVidia
7800 GT / GTX nVidia
7900 GT / GTX |
| Dimension |
226(L)x94.7(W)x43(H)mm |
| Heatsink Material |
Aluminum Fin/ Copper base |
| Heatpipe |
ø 6mm x 2 |
| Fan Dimension |
ø 80x25mm |
| Rated Voltage |
12 V |
| Fan Speed |
1650RPM |
| Air Flow |
9.26 CFM |
| Noise Level |
16 dBA |
| Life Expectation |
50,000 Hours |
| Connector |
4-Pin |
| Weight |
558g |
|
|
|
 |
|
|
 |
|
|
