4 heatpipes, provide maximum cooling.

Heatpipe penetrate fin and seamless soldering process, ensure the best contact

for heat transfer.

Copper base contact heat source directly.

Push-pin design, easy to install.

Silent 9025 fan, only 21dBA at maximum speed.

4 heatpipes

Copper Base

Push-pin

4pin PWM connector

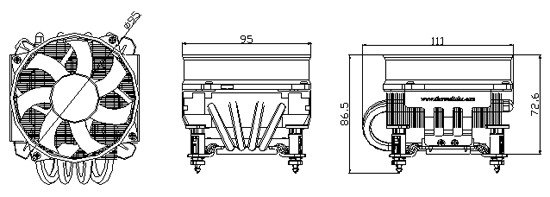

Top View

Side View

CL-P0378

Compatibility

Intel Core^TM 2 Exterme(Socket LGA775)
Intel Core^TM 2 Duo (Socket LGA775)
Intel Pentium Extreme Edition (Socket LGA 775)
Intel Pentium D (Socket LGA 775)
Intel Pentium 4 (Socket LGA775)
Intel Celeron D (Socket LGA775)

Dimension

105(L)x93(W)x85(H)mm

Heatsink Material

Aluminum fins(58fin) soldering copper base

Heatpipe

ø 6mm Copper Tube x 4pcs

Fan Dimension

ø 90x25mm

Rated Voltage

12V

Started Voltage

11.4 V~12.6 V DC

Power Input

1.20~2.40W

Fan Speed

700~2500rpm

Max. Air Flow

41.41CFM

Max. Air Pressure

2.48 mm H₂O

Noise Level

21dBA

Life Time

30,000 Hours

Connector

4pin(PWM function)

Weight

382g
