Tool-free installation for all drive bays & add-on cards
High efficiency ventilation: 12cm silent fan in rear (front 12cm fan is optional)
Side air duct for superior thermal efficiency

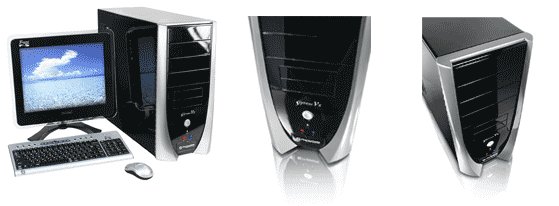

Appearance
Piano-Mirror coating
Streamline appearance
Simple and elegant
Angle view
Ventilation
Side air duct for increased CPU cooling
**Intel TAC1.1 passed (Ta≦38oC)
Retractable side air duct
CPU & VGA cards venting hole
12cm fans in the front and back
(fan in the front is optional)

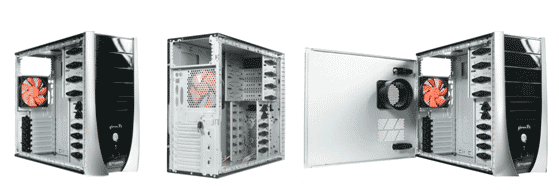

Structure (Internal)
Screw-less kits for 5.25” drive bays
Screw-less kits for 3.5” drive bays
Screw-less kits for HDD drive bays
Screw-less kits for add-on cards
Reliable EMI Shielding
Structure (External)
Easy access front I/O
(USB 2.0 x 2, Firewire,HD Audio ports)
Side panel lock for security
Thumb-Screw for easy side panel opening
High quality rubber foot stand
Easy access power button
Model
VD6000BNS
VD6400BNS
VD6430BNS
Case Type
Middle Tower
Net Weight
6.15 kg
Dimension (H*W*D)
415 x 190 x 510 mm
Cooling System
‧Front (Intake) :
120 x 120 x 25 mm (optional)
‧Rear (Exhaust) :
120 x 120 x 25 mm, 1300rpm, 17dBA
Drive Bays
- Accessible
-
Hidden
10
4 x 5.25’’, 2 x 3.5’’
4 x 3.5’’
Material
SECC Japanese steel
Color
Black
Expansion Slots
7
Motherboards
Micro ATX , Standard ATX
PSU
Standard ATX PSII
400W ATX 12V V2.0
430W ATX 12V V1.3
I/O Ports
USB 2.0 x 2, IEEE 1394 x 1, HD Audio
Container Load
20’-392, 40’-823, 40’HQ-919
