Micro BTX |
Pico BTX |
VFD Display |
|
Pithy aluminum front panel design |
|
Slim type DVD style and pithy aluminum front panel design |
 |
Built-in Media LAB kit with hot keys module : |
|
1. Media LAB Hoy Keys function |
|
2. Media LAB application CD and remote control |
|
3. Media LAB VFD panel
|
|
Superb multimedia capability |
|
Full ATX & Micro ATX & Mini ITX compatibility |
|
Fits Standard PSII PSU |
|
Front I/O ports for easy access |
|
| |
| |
 |
VFD Windows Design |
 |
Accessible DVD Drive Bay w/o Opening Front Door |
 |
|
 |
Built-in 325W CFX PSU |
 |
Bridges for strengthening case structure |
|
|
 |
Built-in BTX Cooler(optional) |
 |
Enclosed SRM panel |
|
|
 |
Intake Air Vent for Providing Better Air Flow |
 |
Thumb-screws for easy open cover |
|
|
 |
 |
| Fan duct in front(intake) plans for great heat dissipation |
|
 |
Built-in PCI-E Riser Card |
|
|
 |
Tool-free slider for 5.25” drive bays |
 |
Easy access USB2.0 & 1394 ports & HD Audio |
|
| |
|
 |
Silent BTX Cooler(Optional)
|
|
 |
Features
1.Application for BTX & Micro BTX Form Factor (Type I) 2.Heatsink: Aluminum fins soldered to copper base
3.Dual-heatpipe facilitate the transmission of heat
4.The 4th pin of the fan connector has PWM & thermal control function
5.Honeywell PCM45F interface material, perform well
6.Noise EliminationSponge absorbs the entering noise from the airflow |
|
|
|
92x92x38mm fan |
Dual-heatpipe |
|
|
| |
|
Multimedia Kit (optional)
|
|
 |

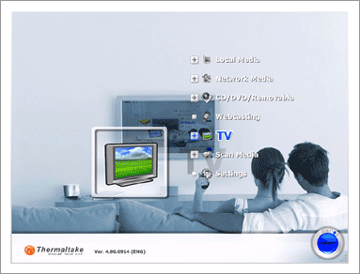

Multimedia Kit Application
CD Language Support :
English, Traditional Chinese,German, French, Japanese, Korean…12multi languages
OS Support :
Windows 98, Windows Me, Windows 2000, Windows XP |
| Application CD |
|
 |

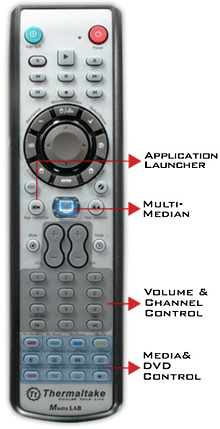

IR remote control |
 |
MUSIC :
Multi-Median supports famous music file
formats like MP3, OGG, WMA and WAV.
User can manage huge amount of music files according to its folder, album, artist and genre. |
 |
MOVIE :
Multi-Median supports famous video file
formats like WMV, AVI(DivX and XviD), ASF, MPG, MPEG, M1V, M2V and DAT. |
|
|
 |
PHOTO :
Multi-Median supports every image files formats like BMP, GIF, JPG, TIFF and PNG.
User can enjoy the slideshow of image files with background music. |
 |
TV :
Multi-Median can show and record the TV channels.
Multi-Median supports every kind of WDM TV card. |
|
|
 |
Digital Camcorder :
Multi-Median supports the DV Digital Camcorder which is connected through IEEE1394 port of PC.
You can control digital camcorder by remote controlr. |
 |
SETTING :
User can change the background skin,
assign media folders and devices, and set various options of Multi-Median. |
|
| |
| Model |
VC9320SNS |
VC9320SNS-02 |
VC9321SNS |
VC9321SNS-02 |
| Case Type |
Slim BTX Media Case
|
| Media Kits |
Optional |
Optional |
Built-in Media LAB |
Built-in Media LAB |
Dimension
(H x Wx D) |
112 x 400 x 400 mm |
| Weight |
6.8 kg |
7.8 kg |
7.2 kg |
8.2 kg |
| Cooling System |
Type I Silent BTX Cooler
|
| Drive Bay |
4 ( Front: 5.25" x 1 / 3.5" x 1 ; Internal: 3.5" x 2 )
|
| Material |
Chassis: 0.8 mm SECC
|
| Color |
Silver
|
| Expansion Slots |
PCI-E x 1 ; PCI x 3
|
| Motherboards |
Micro BTX, Nano BTX, Pico BTX |
| PSU |
Built-in 325W CFX PSU
|
| I/O Ports |
USB 2.0 x 2 ; IEEE 1394 x 1 ; Audio & Speaker ports
|
| BTX Cooler |
Optional |
CL-P0191 |
Optional |
CL-P0191 |
|
|
 |
|
|
